Granite air rails are a critical component in many high - precision equipment applications. As a supplier of granite air rails, I have witnessed firsthand the significant impact these components have on the precision of the machinery they are integrated into. In this blog post, I will delve into the various ways granite air rails affect equipment precision.
1. Material Properties of Granite
Granite is a natural stone with unique physical properties that make it an ideal material for air rails. One of the most important properties is its high thermal stability. Unlike metals, granite has a very low coefficient of thermal expansion. This means that it changes very little in size with temperature fluctuations. In precision equipment, even the slightest change in dimensions due to temperature can lead to significant errors. For example, in a precision machining center, a small expansion or contraction of the rails can cause misalignment of the cutting tool, resulting in inaccurate cuts. With granite air rails, the equipment can maintain its dimensional accuracy over a wide range of operating temperatures.
Another advantage of granite is its excellent damping characteristics. When a machine is in operation, it generates vibrations. These vibrations can be caused by the movement of the components, the cutting forces in machining, or external factors. Vibrations can disrupt the smooth movement of the equipment and lead to inaccuracies in positioning and operation. Granite has the ability to absorb and dissipate these vibrations effectively. This damping effect helps to keep the equipment stable during operation, reducing the chances of errors caused by vibrations. For instance, in a coordinate measuring machine (CMM), where precise measurements are crucial, the damping property of granite air rails ensures that the measuring probe moves smoothly and accurately, providing reliable measurement results.
2. Air Bearing Technology in Granite Air Rails
The combination of granite with air bearing technology is what truly sets granite air rails apart. Air bearings work on the principle of creating a thin film of air between the moving parts of the rail system. This air film eliminates physical contact between the surfaces, which in turn reduces friction to an almost negligible level.
In a traditional mechanical rail system, friction can cause wear and tear on the surfaces over time. This not only shortens the lifespan of the rails but also leads to changes in the rail's geometry, which directly affects the precision of the equipment. With air bearings in granite air rails, the absence of contact means there is no wear, and the geometric accuracy of the rails is maintained for a much longer time.
Moreover, the smooth and uniform air film provides a consistent support for the moving components. This allows for extremely precise linear and rotational movements. In a semiconductor manufacturing process, where the placement of components needs to be accurate within nanometers, granite air rails with air bearing technology can provide the required level of precision. The air film also helps to compensate for minor irregularities in the rail surface, ensuring a smooth and stable movement of the equipment.
3. Surface Finish and Flatness of Granite Air Rails
The surface finish and flatness of granite air rails are of utmost importance for equipment precision. Our manufacturing process ensures that the granite air rails have an extremely high - quality surface finish. A smooth surface reduces the resistance to movement and allows for more precise control of the equipment.
Flatness is another critical factor. Even the smallest deviation from a perfectly flat surface can cause the moving components to tilt or deviate from their intended path. In a precision grinding machine, for example, the flatness of the granite air rail is crucial for achieving a uniform and accurate grinding result. If the rail is not flat, the grinding wheel may not make even contact with the workpiece, leading to uneven grinding and poor surface quality.
We use advanced machining and polishing techniques to achieve the required level of flatness and surface finish on our granite air rails. This attention to detail ensures that the equipment using our rails can operate at the highest level of precision.
4. Applications and Impact on Precision in Different Industries
Precision Manufacturing
In the precision manufacturing industry, such as the production of high - end watches and jewelry, granite air rails play a vital role. The ability to move components with extremely high precision is essential for creating intricate designs and achieving tight tolerances. For example, in the machining of watch components, the precision of the movement of the cutting tools is directly related to the accuracy of the air rails. Our granite air rails help manufacturers meet the demanding precision requirements of this industry, ensuring the quality and functionality of the final products.
Semiconductor Manufacturing
Semiconductor manufacturing is one of the most precision - sensitive industries. The production of microchips requires the placement of components with nanometer - level precision. Granite air rails are used in lithography machines, wafer handling systems, and other critical equipment. The high thermal stability and low friction of granite air rails ensure that the equipment can operate accurately in a cleanroom environment, where temperature and vibration control are essential. This helps to improve the yield and quality of semiconductor products.
Metrology
In the field of metrology, where accurate measurement is the primary goal, granite air rails are widely used in coordinate measuring machines (CMMs). CMMs are used to measure the dimensions and geometries of workpieces with high precision. The stability and precision of the granite air rails ensure that the measuring probe can move smoothly and accurately, providing reliable measurement data. This is crucial for quality control in manufacturing processes and for the development of new products.
5. Our Product Offerings and Their Contribution to Precision
As a supplier of granite air rails, we offer a range of products that are designed to meet the diverse needs of different industries. Our Granite Base For Precision Grinding provides a stable and accurate foundation for precision grinding operations. The high thermal stability and flatness of the granite base ensure that the grinding process can be carried out with high precision, resulting in smooth and accurate workpiece surfaces.
Our Precision Granite Work Table is another product that contributes to equipment precision. It is designed to provide a flat and stable surface for various precision machining and measuring operations. The excellent damping properties of granite help to reduce vibrations, ensuring the accuracy of the operations performed on the work table.

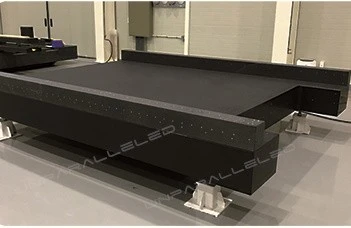

We also offer a variety of Granite Mechanical Components that are integrated into different types of precision equipment. These components are manufactured to the highest standards of quality and precision, ensuring that they can enhance the overall performance and precision of the equipment.
6. Conclusion and Call to Action
In conclusion, granite air rails have a profound impact on the precision of the equipment they are used in. The unique material properties of granite, combined with air bearing technology, surface finish, and flatness, all contribute to the high - precision performance of the equipment. Whether it is in precision manufacturing, semiconductor production, or metrology, our granite air rails and related products can help businesses achieve the highest level of precision in their operations.
If you are looking for high - quality granite air rails to improve the precision of your equipment, we invite you to contact us for a detailed discussion. Our team of experts can provide you with customized solutions based on your specific requirements. Let's work together to take your equipment's precision to the next level.
