In the world of heavy manufacturing, where components can weigh several tons and dimensional tolerances are measured in microns, the foundation upon which machining and inspection operations take place is as critical as the machinery itself. Cast iron surface platforms have emerged as the industry standard for precision workholding, offering a unique combination of material properties that directly address the most persistent challenges in heavy machining operations. From automotive engine manufacturing to aerospace component production, these precision-engineered platforms provide the stable, flat reference surfaces essential for maintaining the extraordinary accuracy demands of modern industry.
The Unique Challenges of Heavy Machining Environments
Heavy machining operations present a distinctive set of challenges that differentiate them from conventional manufacturing. When working with large castings, forged components, or welded structures weighing from hundreds to thousands of kilograms, even minor deflections in the workholding surface can introduce significant dimensional errors. The forces generated during milling, boring, and grinding operations-often measured in tons of cutting force-create vibrations that must be absorbed and dissipated to maintain cutting precision. Additionally, the temperature variations common in production facilities, ranging from seasonal changes to heat generated by the machining process itself, cause thermal expansion that can compromise measurement accuracy.

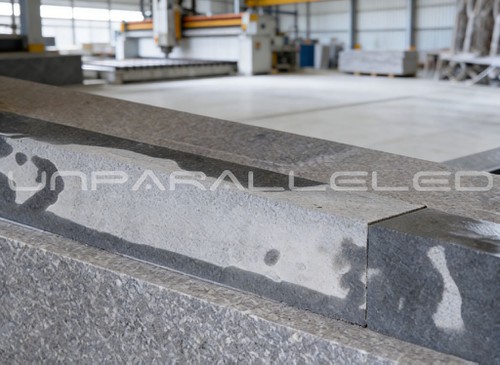

Traditional steel or granite work surfaces, while suitable for many applications, face limitations in heavy machining scenarios. Steel tables, despite their strength, are prone to corrosion and require constant maintenance to prevent surface degradation. Granite surfaces offer excellent dimensional stability but can be brittle and may crack under shock loading or uneven weight distribution. Furthermore, granite's lower thermal conductivity means it responds more slowly to temperature changes, potentially causing measurement uncertainty during transitions between environmental conditions. These challenges are magnified in production environments where 24/7 operation and continuous load cycling are the norm, making material selection and platform design critical factors in maintaining long-term precision.
The Material Advantages of Cast Iron Precision Platforms
High-quality cast iron surface platforms, typically manufactured from HT200 to HT300 grade gray iron according to GB/T 9439 standards, offer a compelling solution to these heavy machining challenges. The material's graphite microstructure provides inherent damping properties that absorb and dissipate vibration generated during machining operations, reducing chatter and improving surface finish quality. Independent testing has demonstrated that cast iron platforms can reduce vibration transmission by up to 40% compared to equivalent steel structures, directly translating to improved tool life and dimensional consistency.
The structural design of modern cast iron platforms further enhances their performance in heavy load scenarios. Featuring deep cross-ribbed construction with grid or herringbone reinforcement patterns, these platforms distribute loads evenly across their entire surface area, minimizing deflection even under maximum rated capacities. Wall thicknesses ranging from 80mm to 150mm, combined with strategically placed support ribs, ensure that platform rigidity is maintained throughout years of continuous service. For particularly demanding applications, ductile iron options such as QT400-18 provide even higher tensile strength and impact resistance while maintaining the excellent damping properties that make cast iron ideal for precision workholding.
Dimensional stability represents another critical advantage of properly manufactured cast iron platforms. Through carefully controlled natural aging processes of six months or more, or advanced artificial aging through high-temperature tempering, internal stresses introduced during the casting process are systematically eliminated. This stress relief prevents the dimensional drift that plagues less carefully prepared metal structures, ensuring that platform flatness remains consistent over time. Testing data from precision metrology laboratories confirms that properly aged cast iron platforms maintain their original flatness specifications within 10% tolerance over one year of continuous use under typical shop floor conditions.
Precision Grades and Application Matching
Cast iron surface platforms are manufactured in five standard accuracy grades according to GB/T 22095-2021 standards, each designed for specific application requirements. Grade 00, the highest precision level, provides flatness tolerances as tight as 0.015mm for a 1000mm × 750mm platform, with contact points exceeding 20 per 200mm × 200mm area. This grade is typically reserved for calibration laboratories, metrology research facilities, and the most demanding inspection applications where temperature control and vibration isolation are maintained at laboratory standards.
Grade 0 platforms, with flatness tolerances of 0.015mm to 0.020mm for standard sizes, represent the precision workhorse of the manufacturing industry. These platforms are commonly found in automotive engine manufacturing facilities for cylinder block and head inspection, die and mold making operations, and aerospace component verification. The 16 or more contact points per 200mm square and surface roughness of Ra 1.6μm provide the reference accuracy needed for critical component measurement and high-precision assembly operations.
For general production floor applications, Grade 1 platforms offer an excellent balance of precision and durability. With flatness tolerances of approximately 0.03mm for a 1000mm × 1000mm platform and minimum 12 contact points per 200mm square, these platforms handle most inspection, layout, and assembly tasks in general machinery manufacturing, construction equipment production, and agricultural machinery facilities. The robustness of Grade 1 platforms makes them particularly well-suited for environments where platforms see continuous daily use across multiple production shifts.
Grades 2 and 3 platforms focus on load capacity and structural rigidity while maintaining practical dimensional accuracy for heavy assembly and rough machining operations. Grade 2 platforms, with flatness tolerances around 0.06mm for standard sizes, serve as workstations for component assembly, welding fixturing, and general layout work. Grade 3 platforms, the most robust option with tolerances of approximately 0.12mm, provide the heavy-duty foundations needed for large steel structure assembly, heavy equipment disassembly and reassembly, and as leveling bases for massive production machinery.
Surface Preparation Technology
The precision achieved by cast iron platforms depends significantly on the surface preparation techniques employed during manufacturing. Hand scraping, the traditional method still preferred for highest precision applications, involves the skilled removal of material using precision hand tools to create the characteristic pattern of contact points across the platform surface. For Grade 0 and Grade 1 platforms, this process creates a minimum of 25 contact points per 25mm square, providing the excellent wringing properties and dimensional stability that define precision metrology surfaces.
Modern manufacturing techniques complement hand scraping with precision planing and grinding operations that achieve surface roughness values as low as Ra 3.2μm for production-grade platforms. These mechanized processes, when properly controlled, deliver consistent surface quality across large platform sizes up to 8000mm × 3000mm and beyond. The combination of precision machining and expert hand finishing creates the hybrid surfaces that balance production efficiency with metrological performance, making modern cast iron platforms suitable for the most demanding industrial applications.
Many platforms also feature specialized surface modifications tailored to specific application requirements. T-slots, V-grooves, tapped holes, and locating grids can be integrated directly into the platform structure, providing versatile workholding capabilities without compromising the reference surface integrity. These integrated features eliminate the need for separate fixturing components that could introduce alignment errors, streamlining production processes and reducing setup time for recurring machining operations.
Implementation Benefits in Heavy Manufacturing
The adoption of precision cast iron platforms delivers measurable operational and quality benefits across heavy manufacturing operations. Extended tool life, resulting from reduced vibration and improved cutting stability, directly reduces production costs and improves machining consistency. One major construction equipment manufacturer reported a 22% reduction in tooling costs within six months of upgrading their machining centers' work platforms to precision cast iron units, attributing the improvement to reduced chatter and improved cutting conditions.
Quality assurance programs also benefit significantly from the stable reference provided by cast iron platforms. The consistent flatness reference reduces measurement uncertainty during incoming inspection, in-process verification, and final quality checks, leading to fewer rejected parts and reduced rework costs. In automotive engine manufacturing, where cylinder bore alignment and crankshaft bore concentricity are critical performance parameters, facilities using Grade 0 cast iron inspection platforms have reported up to 18% reduction in dimensional non-conformities compared to facilities using alternative work surfaces.
The long-term durability of cast iron platforms represents another substantial economic benefit. Unlike surfaces that degrade beyond repair after years of use, cast iron platforms can be rescraped and re-calibrated multiple times, effectively extending their service life indefinitely with proper maintenance. This restorability makes cast iron platforms a long-term capital investment rather than a consumable asset, providing decades of reliable service with periodic professional maintenance.
Conclusion
Cast iron precision platforms represent far more than just flat surfaces for holding workpieces-they are engineered foundations that directly impact the quality, efficiency, and profitability of heavy machining operations. Through the combination of excellent vibration damping properties, inherent dimensional stability, exceptional load-bearing capacity, and proven long-term durability, these platforms address the fundamental challenges of manufacturing large, high-precision components.
As heavy industry continues to demand tighter tolerances, higher production volumes, and improved quality consistency, the role of precision cast iron platforms as the foundational reference for machining and inspection operations will only grow in importance. From automotive engine production to aerospace component manufacturing, from heavy equipment assembly to precision mold making, cast iron platforms provide the dimensional stability and structural reliability that modern manufacturing demands. For engineering and production professionals seeking to elevate their machining precision and operational efficiency, investing in high-quality cast iron surface platforms represents a strategic decision that delivers returns through improved product quality, reduced operational costs, and enhanced production consistency for decades to come.
