Granite Surface Plate Manufacturing Process: From Raw Stone to Precision Tool
Granite surface plates are high-precision reference bases used for dimensional inspection, calibration, and layout in industries such as aerospace, automotive, and machine tool manufacturing. Made from dense, stable natural granite, these plates provide an exceptionally flat and non-magnetic surface, making them ideal for high-accuracy measurements and equipment alignment.
The manufacturing of a granite surface plate involves two primary stages: blank preparation and precision machining.
Stage 1: Granite Plate Blank Preparation
The process begins with the selection of high-quality natural granite sourced from deep quarries. Only stone with fine grain, uniform texture, and low porosity is selected for metrology-grade plates.
Technical Planning
Engineers create detailed production drawings based on the required size, flatness, and load-bearing capacity of the final plate.
Cutting and Shaping

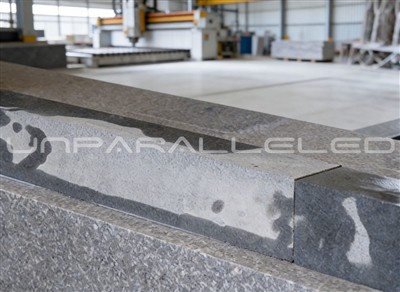

Large granite blocks are cut into rough slabs using diamond saws. These slabs are shaped to approximate dimensions based on the technical drawings.
Thermal Aging & Stress Relief
The rough slabs undergo natural or thermal aging to eliminate internal stress and ensure long-term dimensional stability.
Initial Cleaning and Inspection
After forming the blank, each piece is cleaned thoroughly and visually inspected for cracks, inclusions, or other structural flaws.
Stage 2: Precision Machining and Finishing
Once the blank passes quality control, it proceeds to the precision machining phase.
Leveling and Grinding
The granite slab is leveled using precision grinding equipment to bring it close to the desired flatness.
Manual Lapping and Scraping
Skilled technicians hand-lap the surface using specialized tools and techniques. This step is critical for achieving ultra-flat surfaces within microns of tolerance. In some cases, the three-plate method is used to ensure true flatness without relying on a single master.
Laboratory Testing
After lapping, the surface undergoes rigorous testing in a controlled environment. Tools such as electronic levels, autocollimators, or laser interferometers are used to verify flatness, squareness, and repeatability according to standards (e.g., DIN 876, GB, or JIS).
Appearance Treatment
The edges of the plate are beveled for safety, and the entire unit is cleaned and finished. Optional features such as T-slots, threaded inserts, or lifting handles may be added based on customer requirements.
Painting, Labeling, and Packaging
Identification markings and protective coatings are applied. Finally, the surface plate is securely packaged and placed in climate-controlled storage or prepared for shipping.
✅ Summary
The production of a granite surface plate is a meticulous process that combines modern machining with traditional hand-finishing techniques. From raw stone selection to precision scraping and lab testing, every step is designed to ensure long-term stability, exceptional flatness, and repeatable performance-essential traits for reliable industrial metrology.
