A well-equipped quality inspection station is the backbone of any manufacturing operation striving for precision and compliance. For facility managers and quality directors, ensuring that inspection processes are accurate, reliable, and traceable begins with selecting the right combination of equipment and organizing the workspace efficiently.

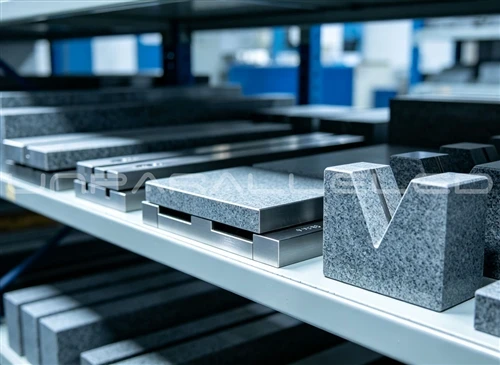

Granite surface plates form the foundation of every inspection station. A Grade A plate, at least 600×450 mm, provides a stable reference surface for dimensional checks. Essential hand tools and measuring instruments include digital height gauges with 0.001 mm resolution, dial indicators, gauge blocks (Grade 1 or better), V-blocks, and angle plates. Complementary systems like inspection lighting and vibration isolation pads ensure consistent measurement conditions.
Room layout and environmental control are equally critical. Maintaining a temperature of 20 ± 1 °C, humidity below 60% RH, and adequate working clearance around the inspection table minimizes measurement errors. Integrating instruments with SPC software allows real-time data collection, while barcode scanning enhances traceability and efficiency. Proper calibration scheduling ensures ongoing accuracy and compliance with industry standards.
Budgeting for inspection setups depends on the facility scale: basic configurations range from $5,000–10,000, intermediate setups $15,000–25,000, and advanced systems exceeding $40,000, including CMM integration. To simplify planning, downloadable equipment specification templates and vendor evaluation checklists are available for decision-makers.
Common setup pitfalls-such as inadequate lighting, insufficient ventilation, undersized surface plates, and missing calibration protocols-can compromise inspection reliability. Training is essential: personnel should be certified in GD&T principles and quality standards like ASQ, ensuring consistent measurement practices.
For manufacturers building or upgrading their inspection stations, this checklist offers a complete roadmap-covering tools, layout, environmental control, integration, and personnel training-to establish a high-performance, traceable, and efficient quality inspection environment.
