Optical and laser systems require extremely stable structural platforms.
Even minor vibration or thermal expansion can affect optical alignment and positioning accuracy.
Precision granite structures are widely used in optical and laser industries because of their dimensional stability and vibration damping performance.
Why Optical Systems Require Precision Structures
Optical systems are highly sensitive to:
- Thermal deformation
- Vibration
- Structural instability
- Positioning errors
Precision granite helps maintain stable optical alignment during operation.
Vibration Damping in Laser Equipment
Granite absorbs vibration better than many traditional metal materials.
Improved vibration damping benefits:
- Optical alignment stability
- Laser positioning accuracy
- Surface quality
- Measurement precision
This is especially important in interferometer and optical inspection systems.
Thermal Stability for Optical Alignment
Precision granite provides stable performance under changing temperatures.
Typical granite thermal expansion:
4.6×10⁻⁶/°C
Low thermal deformation helps maintain optical positioning accuracy.

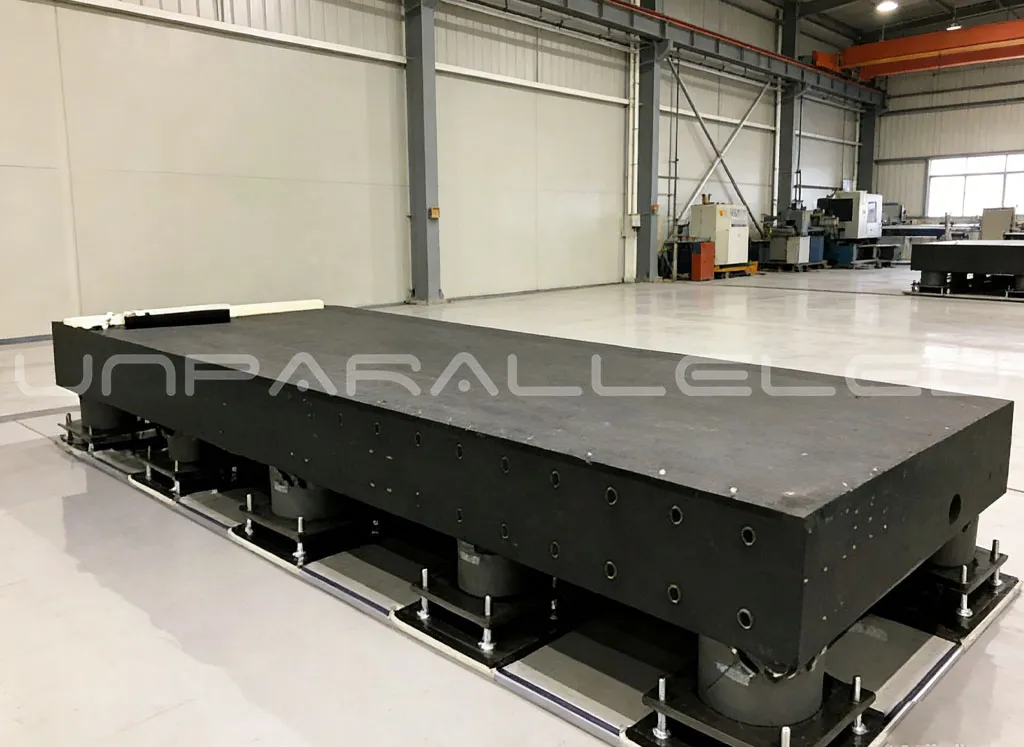

Applications of Precision Granite in Optical Systems
|
Industry |
Application |
|
Optics |
Optical alignment platform |
|
Laser Equipment |
Precision laser base |
|
Semiconductor |
Optical inspection system |
|
Metrology |
Interferometer platform |
|
Precision Automation |
Motion control structure |
Typical Technical Specifications
|
Specification |
Typical Value |
|
Flatness |
2μm/1000mm |
|
Surface Finish |
Ra 0.4 |
|
Parallelism |
3μm |
|
Thermal Stability |
Excellent |
Why Choose UNPARALLELED®
UNPARALLELED® manufactures ultra precision granite structures for optical, laser, and semiconductor industries.
Our capabilities include:
- Large granite machining
- Ultra precision grinding
- Complex structural assembly
- Semiconductor-grade precision control
- High flatness optical platforms
FAQ
Why is granite used in optical systems?
Granite provides excellent thermal stability and vibration damping for optical alignment systems.
What industries use optical granite platforms?
Optics, semiconductor, metrology, and laser industries widely use precision granite structures.
Can granite improve laser positioning accuracy?
Yes. Granite helps reduce vibration and thermal deformation, improving positioning stability.
