In the competitive landscape of high-speed automation and sub-micron metrology, the mechanical foundation is no longer just a "support"-it is a critical functional component. For OEMs (Original Equipment Manufacturers) designing the next generation of wafer probers, laser cutters, or DNA sequencers, the transition to a custom granite machine base with threaded inserts is a strategic move toward absolute stability. However, the true value lies not just in the stone, but in the micro-precision of the machining that allows for the seamless integration of complex mechanical hardware.
The primary challenge in modern machine design is managing the trade-off between mass and connectivity. While natural granite provides the ultimate damping and thermal inertia, it is famously difficult to modify once it has been lapped to a Grade 000 finish. This is why the expertise of the manufacturer in drilling, tapping, and positioning becomes the deciding factor in the success of the final assembly.
The Precision of Granite Machining: Beyond Simple Drilling

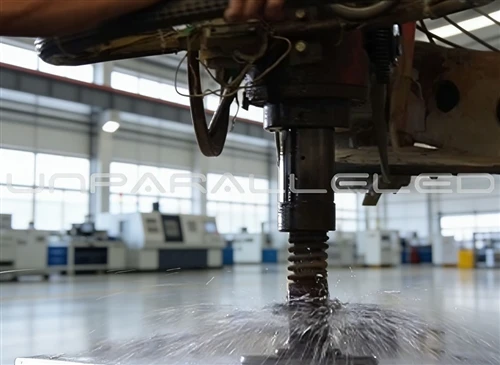

At UNPARALLELED Group, our approach to a custom granite machine base with threaded inserts begins with state-of-the-art CNC processing. Unlike traditional masonry, precision engineering in granite requires specialized diamond-tipped tooling and constant thermal monitoring.
Our facility is capable of executing complex hole patterns with extreme positional accuracy. Whether your design requires through-holes for cabling, counterbores for heavy-duty mounting, or precision-reamed holes for dowel pins, we maintain tolerances that meet the most demanding international standards. For an OEM, this means that when the base arrives at your assembly line, every linear rail and air-bearing stage drops into place with zero mechanical stress, eliminating the need for shimming or on-site adjustments.
The Science of Threaded Inserts: Bonding and Pull-out Strength
A custom granite machine base with threaded inserts is only as reliable as the bond between the metal and the stone. Because granite cannot be tapped directly for high-load applications, we utilize high-grade 316 stainless steel or Invar inserts. These are not simply "screwed in"; they are chemically bonded using proprietary, aerospace-grade epoxy resins.
Our bonding process is engineered to withstand the high-frequency vibrations of linear motors. We pay meticulous attention to:
Perpendicularity: Ensuring each insert is perfectly square to the reference surface to prevent bolt-binding.
Depth Control: Precision-setting the depth of the threaded inserts to allow for flush-mounting of plates and components.
Pull-out Testing: Our inserts are designed to exceed the tensile strength of the mounting bolts themselves, providing a factor of safety that is essential for heavy industrial machinery.
Achieving Micron-Level Positional Accuracy
For OEMs in the semiconductor industry, the positional accuracy of a custom granite machine base with threaded inserts is often measured in microns over a meter of travel. We utilize laser interferometers and electronic levels to verify the relationship between the inserts and the lapped surface.
If your design requires a multi-level base with steps, slots, or T-slots, UNPARALLELED Group ensures that the "Golden Reference" plane remains consistent across all features. This level of integrated precision reduces the "stack-up error" in your final machine, directly leading to higher throughput and better yield rates for your end-users.
The UNPARALLELED Advantage: A Turnkey OEM Solution
Choosing UNPARALLELED Group for your custom granite machine base with threaded inserts means partnering with a team that speaks the language of high-end engineering. We understand that for an OEM, time-to-market and reliability are paramount. By providing a base that is already drilled, tapped, and certified, we remove a major bottleneck from your production cycle.
Our Jinan Black granite provides the natural damping your sensors need, while our precision machining provides the connectivity your engineers demand. In a world where sub-micron precision is the baseline, we provide the "unparalleled" foundation that makes it possible. From initial CAD consultation to the final export-ready crate, we ensure that your machine stands on the most stable, accurately machined platform available in the global market today.
Conclusion: Stability Integrated with Connectivity
The future of precision manufacturing belongs to those who can master the interface between raw material and mechanical hardware. A custom granite machine base with threaded inserts is the ultimate expression of this mastery. By investing in a foundation that is as precisely engineered as the optics or electronics it supports, you are future-proofing your equipment against the challenges of tomorrow's industry.
