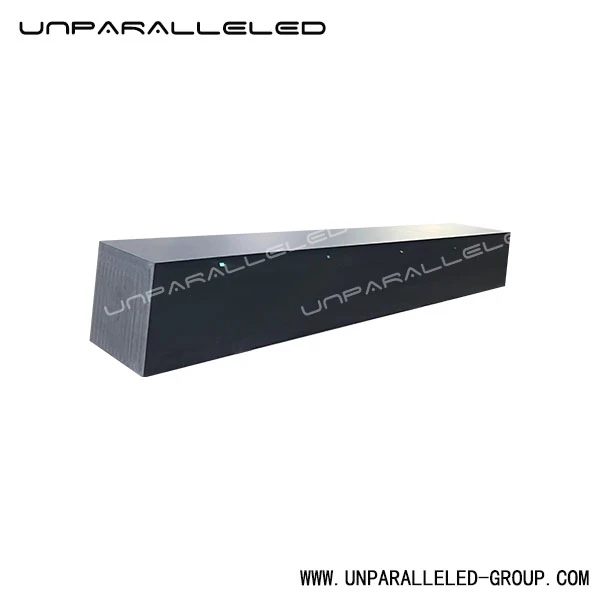

A Surface Plate

UNPARALLELED LTD is one of the leading manufacturers and suppliers of a surface plate in China. With abundant experience, we warmly welcome you to buy advanced a surface plate made in China here from our factory. We also accept custom orders.

Why This Machine Base Is Different From Every Other Slab on the Market

Most granite machine bases are cut from whatever black stone the quarry sent that month. The density varies. The mineral composition is inconsistent. The flatness tolerance printed on the quotation is aspirational - not guaranteed.

UNPARALLELED® precision black granite machine bases are different by design. Every slab starts with UNPARALLELED® black granite - a material specification, not a quarry description. Our black granite carries a verified density of approximately 3,100kg/m³, mineral composition verified at incoming inspection, and flatness tolerance certified to international standards before it leaves our temperature-controlled inspection room.

The machine base in the photograph above is not a stock item. It is a precision component manufactured to your specification, inspected against DIN876, ASME B89.7.3.1, or your applicable standard, and shipped with calibration documentation traceable to China's National Metrology Institute.

If your equipment requires a reference surface that does not deceive you - one that performs exactly as its specification says it will - read on.

Standard Dimension Range (Common Sizes)

Note: Custom dimensions, flatness grades, surface treatments, and mounting configurations available upon request.

Six reasons why precision equipment manufacturers worldwide specify UNPARALLELED® granite machine bases:

1. Material Consistency You Can Measure, Not Just Trust

Our black granite density of 3,100kg/m³ is verified at incoming material inspection. This is not a marketing claim - it is a physical property we measure and record for every stone batch. Higher density means better vibration damping, lower porosity, and superior long-term flatness retention. We know of no other granite supplier in China that performs routine incoming density verification on raw stone. We do it because our craftsmen cannot achieve Grade 00 flatness on inconsistent material - the quality of our output depends on the consistency of our input.

2. Temperature Stability That Protects Your Equipment's Accuracy

Precision equipment generates heat. Ambient temperature fluctuates. Your granite machine base must not expand and contract enough to shift your equipment's geometric calibration. UNPARALLELED® black granite maintains a thermal expansion coefficient below 0.001mm/°C - for a 3-meter base, a 10°C temperature gradient produces less than 30μm of dimensional change. For femtosecond laser systems and coordinate measuring machines, this thermal stability is the difference between meeting and missing published accuracy specifications.

3. Flatness Precision That Matches Your Equipment's Resolution

Our Grade 00 granite surface plates achieve flatness tolerances of ≤0.5μm/m - verified with German Mahr precision comparators, Swiss Wyler electronic levels, and Renishaw laser interferometers, all calibrated traceable to China's National Metrology Institute. If your equipment measures in microns, your machine base must be manufactured to microns. We do not offer "Grade 00 equivalent" - we offer Grade 00, with the measurement data to prove it.

4. Scale Capability That Few Manufacturers Can Match

UNPARALLELED® manufactures granite machine bases up to 20,000mm in length, 4,000mm in width, and 1,000mm in thickness, handling single-piece weights up to 100 tons. Four Taiwan-made Natma precision grinding centers - each worth more than USD 500,000 - process profiles up to 6,000mm. Our monthly capacity of 20,000 sets of 5,000mm granite precision beds means we can support high-volume OEM orders without compromising delivery schedules.

5. The Human Skill That Machines Cannot Replace

Our most experienced grinding craftsmen have spent more than 30 years developing hand-feel sensitivity that allows them to detect micron-level material removal through tactile feedback alone. They are the reason UNPARALLELED® surface plates achieve flatness that automated grinding systems struggle to match on large-format pieces. Our customers call them "walking electronic levels" - not as a marketing phrase, but because these craftsmen consistently detect deviations that electronic instruments need minutes to measure. This human expertise is not in the specification sheet. It is in every piece we ship.

6. Full International Standard Compliance, One Supplier, All Markets

UNPARALLELED® manufactures to DIN876, ASME B89.7.3.1, JIS B7513, BS817-1983, GOST 10905-1975, GB/T 4986, and other international standards from a single production system. One purchase order covers your compliance requirements across Germany, the USA, Japan, the UK, Russia, and China - without maintaining separate supplier relationships for each market.

Semiconductor Manufacturing Equipment

Granite machine bases provide the vibration damping and thermal stability required for lithography, inspection, and wafer handling equipment. UNPARALLELED® granite bases support semiconductor OEMs who specify granite for its ability to maintain sub-micron geometric accuracy across thermal cycling in controlled cleanroom environments. Our dedicated temperature-controlled dust-free assembly room is designed to simulate semiconductor cleanroom conditions for ultra-clean component integration.

Coordinate Measuring Machines (CMM)

CMMs require a reference surface whose flatness directly determines measurement accuracy. A CMM granite base that does not meet Grade 00 tolerances produces systematic measurement errors - the base itself becomes the error source. UNPARALLELED® supplies CMM manufacturers and calibration laboratories with granite surface plates certified to DIN876 Grade 00, with calibration documentation traceable to national metrology institutes.

Precision Laser Systems (Femtosecond and Picosecond)

High-power precision laser systems are sensitive to sub-micron positional drift caused by vibration and thermal expansion. UNPARALLELED® granite machine bases are specified by manufacturers of femtosecond and picosecond laser systems for their superior vibration damping - granite's internal microstructure absorbs vibrational energy across a broad frequency range in ways that steel and ceramic alternatives cannot match.

PCB Drilling and Routing Machines

High-speed PCB drilling machines operate with spindle speeds exceeding 200,000 RPM. At those speeds, vibration transmitted from the machine base to the drill head produces registration errors that scrap boards. UNPARALLELED® granite bases provide the mass and damping needed to isolate high-speed spindle dynamics from the machine's geometric reference frame.

AOI and Optical Inspection Systems

Automated optical inspection systems and industrial CT scanners require vibration-free platforms that maintain optical alignment under dynamic conditions. Our granite bases support AOI equipment manufacturers who need sub-micron positional stability during high-speed image acquisition.

Q: We have purchased granite machine bases from other Chinese suppliers before and the flatness did not match the certificate. How can we verify your certification?

A: Every UNPARALLELED® granite machine base ships with calibration inspection documentation that includes the raw measurement data - not just a pass/fail statement. We provide autocollimator readings, electronic level measurement logs, instrument calibration certificate numbers, and temperature records from the measurement session. Our instruments are calibrated at the Shandong Metrology Institute and Jinan Metrology Institute, traceable to China's National Metrology Institute. You can independently verify our credentials by contacting the issuing institutions. We welcome - and have accommodated - buyer witness inspection during production for critical applications.

Q: Our equipment requires a granite base larger than 5 meters. Can UNPARALLELED® manufacture and verify flatness on pieces that large?

A: Yes. UNPARALLELED® manufactures granite machine bases up to 20,000mm in length. Our 10,000m² temperature-controlled workshop with vibration-dampening trench design and silent overhead cranes enables us to grind and measure large-format pieces in controlled environmental conditions. We operate four Natma precision grinding centers capable of profile grinding up to 6,000mm pieces, and we have produced granite bases exceeding 10 meters for semiconductor and precision CNC equipment manufacturers. Flatness verification on large pieces follows the same standards as small pieces - autocollimator grid measurement with temperature control.

Q: We need granite machine bases that meet CE requirements for the European market. Does UNPARALLELED® hold CE certification?

A: Yes. UNPARALLELED® holds CE certification for its precision granite product lines, in addition to ISO9001:2015, ISO45001, and ISO14001. CE certification is included with export shipments to European buyers. Our quality management system is certified by an accredited registrar, and our calibration instruments carry traceable certificates from recognized metrology institutes.

Q: Is UNPARALLELED® black granite actually granite, or is it marble or another stone?

A: UNPARALLELED® precision granite products are manufactured from genuine natural black granite - specifically UNPARALLELED® black granite with a verified density of approximately 3,100kg/m³. We do not use marble as a substitute material. Marble has a density of approximately 2,500–2,700kg/m³ and significantly inferior mechanical properties for precision applications - higher thermal expansion, lower hardness, and susceptibility to scratching. Some lower-cost suppliers substitute marble to reduce material cost. UNPARALLELED® refuses this practice. Our incoming material inspection verifies stone type and density for every raw material batch before it enters production.

Q: We need a flatness Grade 00 surface plate but are concerned about damage during shipping. How does UNPARALLELED® protect precision surfaces during transport?

A: UNPARALLELED® uses purpose-designed export packing for all precision granite products: foam cushioning between the granite surface and wooden crate, shock-absorbing corner blocks, desiccant packs to control moisture during sea freight, and clear labeling indicating fragile precision components. We work with freight forwarders experienced in heavy oversized precision cargo. Upon delivery, we provide thermal equilibration instructions - a Grade 00 plate that arrives cold must equilibrate to room temperature for a minimum of 4 hours (24 hours preferred) before measurement or use. We include these instructions with every shipment. If damage occurs during transport despite our packing protocols, we have a standard non-conformance response process that results in replacement or repair at our cost.

Q: We require technical support during installation. Does UNPARALLELED® provide installation guidance or on-site service?

A: UNPARALLELED® provides detailed installation guidance documentation with every machine base, including support point positioning recommendations, leveling procedures, torque specifications for anchor bolts, and thermal equilibration guidance. For OEM buyers with critical applications, our engineering team is available for technical consultation via email and video conference. On-site service is available on request and can be quoted as part of a comprehensive service package. We have supported customers worldwide - from Singapore to Germany to the United States - with installation qualification documentation and technical consultation.
