Optical Inspection Systems

UNPARALLELED LTD is one of the leading manufacturers and suppliers of optical inspection systems in China. With abundant experience, we warmly welcome you to buy advanced optical inspection systems made in China here from our factory. We also accept custom orders.

The Core Value Proposition: Foundations Built for Absolute Dimensional Truth

In sub-micron manufacturing, your motion control is only as good as the rock it rests upon. When high-acceleration linear motors shift directions in milliseconds, structural micro-warping or settling delays instantly ruin your throughput.

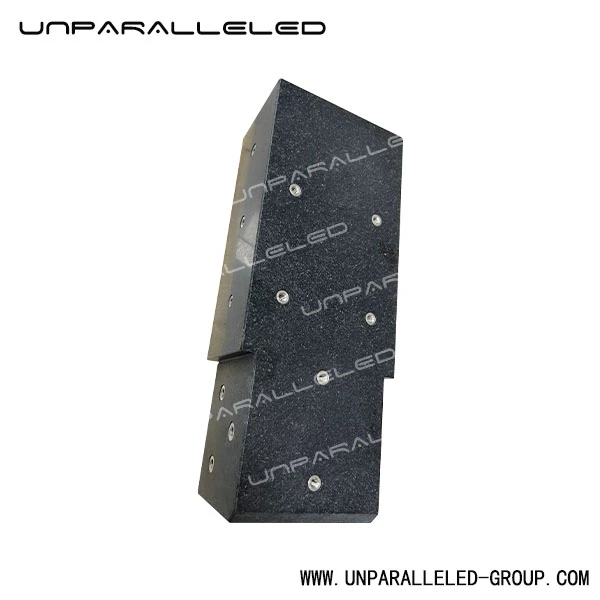

UNPARALLELED Group engineers this custom granite assembly to isolate your application from kinetic and thermal distortions. Unlike generic commercial stones or low-cost architectural marble blends that alter shape under room changes, our authentic UNPARALLELED® Black Granite is structurally dead, highly stable, and built to survive decades of continuous cleanroom cycles without geometry drift. We design with a clear promise: No cheating, No concealment, No misleading.

Below are the definitive material data sets matching our strict quality policy-The precision business can't be too demanding.

• True 3100 kg/m³ Density Wall: Our stone provides virtually zero porosity. It completely repels cleanroom humidity, chemical solvents, and industrial cutting fluids, meaning no swelling, pitting, or micro-flaking over long-term deployment.

• Joint-Free Machining Limits: Backed by our massive 200,000 m² factory footprint near Qingdao Port, we can process massive single-block granite components up to 20 meters long and weighing up to 100 tons. No mechanical joints mean no structural stress mismatches.

• The Hand-Lapped Finish: While automated grinders handle initial material removal, our master artisans with over 30 years of hands-on manual lapping experience perform the final finishing steps. Known by world leaders as "The Walking Electronic Levels," they ensure reference planes hit sub-micron parameters that standard machinery cannot execute.

When you switch from metal castings or architectural stone structures to an UNPARALLELED® granite base, your automated system gains distinct operational benefits:

• Immediate Cycle Time Reduction: Because the dense stone crystalline structure deadens dynamic vibrations instantly, your optical sensors and AOI cameras don't have to wait for structural settling before taking a reading.

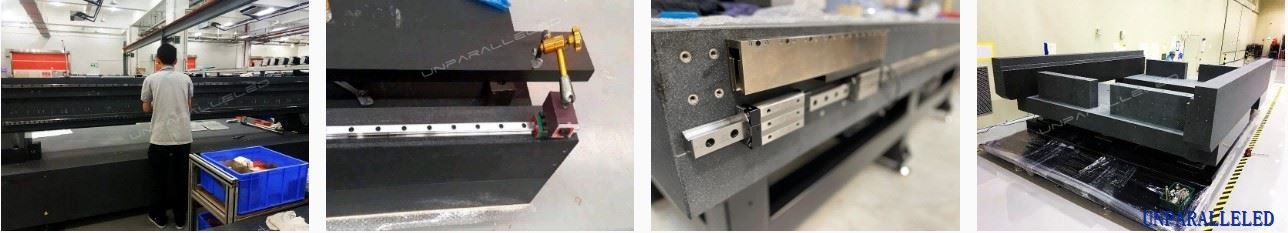

• Simplified Rail Alignment: Our multi-axis CNC drilling and grinding ensure that embedded inserts match your guide rail layouts perfectly, reducing manual assembly hours on your shop floor.

Q1: How do you guarantee the position and pull-out strength of the threaded metal inserts?

A: All insert configurations are drilled on ultra-rigid Taiwan Nante grinding and machining centers within our 10,000 m² constant temperature workshop. We use specialized high-strength industrial epoxies to bond the stainless steel inserts, testing each layout to handle high torque forces from heavy industrial linear tracks without loosening.

Q2: Is the accuracy of this component certified for global semiconductor export?

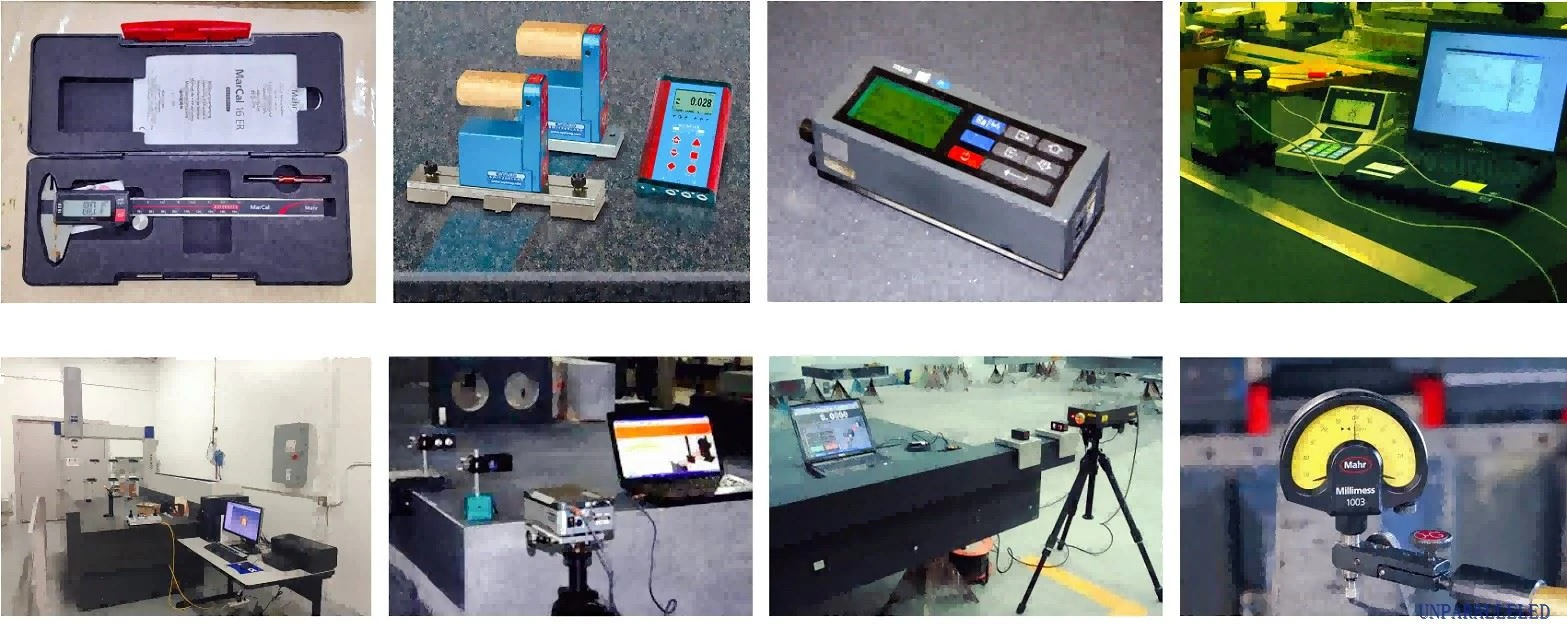

A: Absolutely. Every precision granite component comes with an official calibration report verified via Germany Mahr indicators (0.5µm), Swiss WYLER levels, or UK Renishaw laser Interferometer. All data is fully traceable back to the National Institute of Metrology (NIM), facilitating first-time acceptance during incoming factory quality audits in Europe, Japan, or America.
