As a supplier of granite air slides, I understand the critical importance of accurately measuring the performance of these precision components. Granite air slides are widely used in various industrial applications, including semiconductor manufacturing, precision machining, and optical inspection, where high precision and stability are paramount. In this blog post, I will share some key methods and considerations for measuring the performance of granite air slides.
1. Accuracy of Motion
One of the primary performance indicators of a granite air slide is the accuracy of its motion. This includes both linear and angular accuracy.
Linear Accuracy
Linear accuracy refers to how closely the actual movement of the slide matches the desired linear path. To measure linear accuracy, we can use a laser interferometer. This device emits a laser beam that reflects off a mirror attached to the moving part of the air slide. By analyzing the interference pattern of the reflected laser beam, we can precisely measure the displacement of the slide. The measurement is typically taken at multiple points along the travel path of the slide to ensure that the linear accuracy is consistent throughout. For example, in a high - precision semiconductor manufacturing process, the linear accuracy of a granite air slide may need to be within a few micrometers over a travel distance of several hundred millimeters.
Angular Accuracy
Angular accuracy is crucial when the slide needs to move in a straight line without any rotational deviation. A autocollimator can be used to measure angular accuracy. The autocollimator projects a beam of light onto a small mirror on the slide. Any angular movement of the slide will cause a deviation in the reflected beam, which can be measured by the autocollimator. This measurement helps to ensure that the slide moves in a truly straight line and is not tilted or rotated during operation.
2. Repeatability
Repeatability is another important performance metric. It refers to the ability of the air slide to return to the same position repeatedly with a high degree of accuracy. To measure repeatability, the slide is moved to a specific position multiple times (usually at least 10 times). The position of the slide is measured each time using a high - precision measuring device such as a linear encoder. The difference between the measured positions is then calculated. A low variation in these measurements indicates high repeatability. For instance, in an automated optical inspection system, the granite air slide needs to have excellent repeatability to ensure that the inspection is carried out at the exact same location on each workpiece.
3. Load Capacity and Stiffness
Load Capacity
The load capacity of a granite air slide is the maximum weight it can support without significant degradation in performance. To determine the load capacity, a series of tests are conducted by gradually increasing the load on the slide while monitoring its motion accuracy and stability. Specialized load - testing equipment is used to apply the load evenly on the slide. If the slide starts to show signs of reduced accuracy or increased vibration under a certain load, that load is considered close to its maximum capacity. For example, in a heavy - duty precision machining application, the granite air slide must be able to support the weight of the cutting tool and the workpiece without compromising its performance.
Stiffness
Stiffness is related to how much the slide deflects under a given load. A stiffer slide will have less deflection, which is important for maintaining high precision. Stiffness can be measured by applying a known force to the slide and measuring the resulting displacement. A high - stiffness slide is desirable in applications where there are dynamic forces acting on the slide, such as in high - speed machining operations.
4. Surface Flatness and Roughness
Surface Flatness
The flatness of the granite surface of the air slide is crucial for smooth and accurate motion. A flatness measuring instrument, such as a coordinate measuring machine (CMM), can be used to measure the flatness of the granite surface. The CMM uses a probe to touch multiple points on the surface of the slide, and then software analyzes the data to calculate the flatness deviation. In applications where the slide needs to support delicate components, such as in micro - electronics manufacturing, a high degree of surface flatness is required.
Surface Roughness
Surface roughness affects the friction between the slide and the air bearing. A profilometer can be used to measure the surface roughness of the granite. The profilometer measures the microscopic peaks and valleys on the surface. A smooth surface with low roughness is preferred for better air bearing performance and reduced wear.
5. Air Bearing Performance
The air bearing is the key component that enables the smooth and frictionless movement of the granite air slide.
Air Pressure and Flow
Proper air pressure and flow are essential for the correct operation of the air bearing. Air pressure sensors and flow meters can be used to measure these parameters. The air pressure should be maintained within a specific range to ensure that the slide floats smoothly on the air cushion. If the air pressure is too low, the slide may come into contact with the surface, causing friction and wear. If the air pressure is too high, it may lead to instability.
Air Bearing Clearance
The clearance between the slide and the air bearing surface is also an important factor. This clearance can be measured using a non - contact displacement sensor. A consistent and appropriate air bearing clearance is necessary for optimal performance and long - term reliability.
Why Choose Our Granite Air Slides?
Our company offers high - quality granite air slides that are designed and manufactured to meet the strictest performance standards. We use advanced manufacturing techniques and high - grade granite materials to ensure the best possible performance. Our granite air slides are suitable for a wide range of industrial applications and can be customized to meet specific customer requirements.

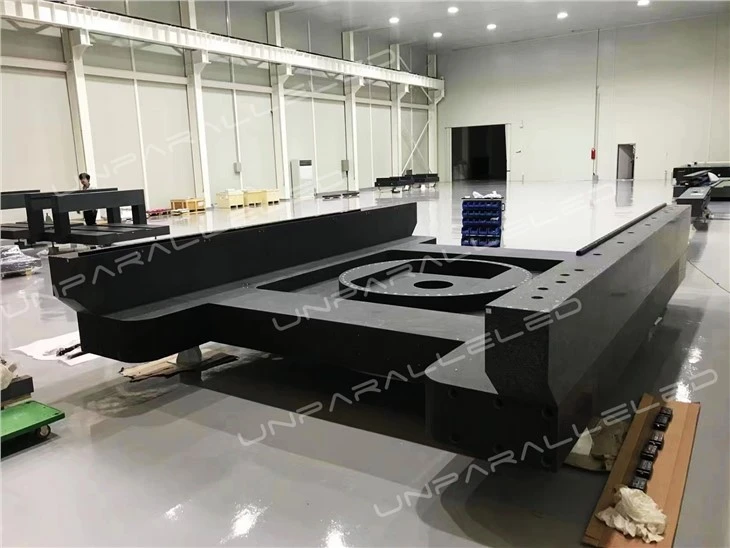

If you are looking for Industrial Precision Components, Granite Structural Component, or Vision Inspection Granite Base, our products are the ideal choice.
We invite you to contact us for more information and to discuss your specific needs. Our team of experts is ready to provide you with the best solutions and support for your industrial applications. Whether you are in the semiconductor, precision machining, or optical inspection industry, our granite air slides can help you achieve higher precision and productivity.
