In the quiet, climate-controlled environments of the world's most advanced metrology labs, there is one constant challenge that even the most sophisticated measurement equipment cannot overcome: a granite surface plate that is not properly installed and leveled. A CMM or coordinate measuring machine sitting on a misaligned granite platform is like a Formula 1 car on a bumpy road-it doesn't matter how advanced the vehicle is; the performance will suffer.
For precision instrument manufacturers and metrology laboratories, achieving ±µm-level accuracy is not a luxury-it is a requirement. However, achieving this level of precision begins long before the first measurement is taken. It begins with the installation of the granite surface plate itself.
Why Installation Matters More Than You Think
The granite surface plate serves as the reference plane for all precision measurements. Even microscopic deviations from true flatness can propagate through your measurement process, causing systematic errors that are difficult to trace back to their source. Industry standards dictate that granite surface plates must meet specific flatness tolerances, but these specifications are meaningless if the plate is not installed correctly.
Consider this: a granite surface plate delivered with a flatness tolerance of Grade 0 (the highest standard) can easily lose that specification during installation if proper leveling procedures are not followed. The investment in a premium granite plate can be negated by a single mistake in the installation process.
The 7-Step Installation Protocol for Micron-Level Precision

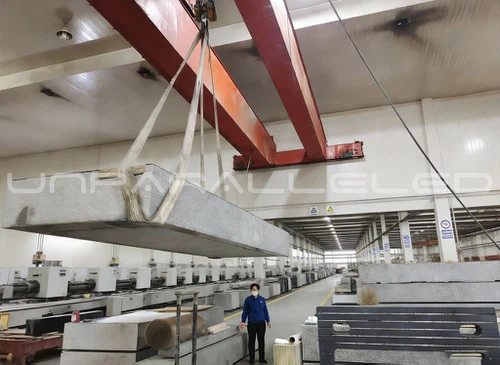

Step 1: Site Preparation and Foundation Assessment
Before the granite surface plate even arrives, the installation site must be evaluated. The foundation must be level and capable of supporting the weight of the plate plus any equipment that will be placed on it. For larger plates, a reinforced concrete slab is often necessary to prevent settling over time.
Critical Requirement: The floor must be level to within 0.5mm/m. Any deviation beyond this will create permanent stress in the granite structure when the plate is installed.
Step 2: Environmental Control Setup
Temperature stability is the invisible enemy of precision. Granite has a coefficient of thermal expansion of approximately 8×10⁻⁶/°C. For a 1000mm plate, a 1°C temperature change causes 8µm of dimensional change.
Best Practice: Install the granite surface plate in an environment with temperature controlled to ±1°C and humidity between 40-60%. Allow the plate to acclimate to this environment for at least 48 hours before proceeding with installation.
Step 3: Support Point Positioning
This is where most installations fail. The support points must be positioned according to the "three-point support principle" for optimal stability. For rectangular plates, the ideal support configuration places supports at approximately 20-30% from the edges along the length, and centered along the width.
Common Mistake: Using more than three main support points, which can create a "rocking" condition if the supports are not perfectly coplanar. Additional leveling points can be used, but they should be secondary to the three primary supports.
Step 4: Precision Leveling to Within µm Tolerances
Using a precision electronic level with a resolution of at least 0.001mm/m, adjust the support points until the granite surface plate is level within specified tolerances. For metrology-grade installations, this typically means leveling to within 0.005mm/m or better.
Pro Tip: Take readings in multiple orientations and at different times of day to account for any thermal drift in the leveling instrument or the granite itself.
Step 5: Verification and Calibration
Once leveled, verify the flatness of the granite surface plate using an autocollimator, laser interferometer, or electronic indicator. For Grade 0 plates, the verification must be performed by a certified calibration laboratory with traceable standards.
Documentation: Record all verification data and maintain it for quality audit purposes. This documentation is often required for ISO 9001 and other quality management system certifications.
Step 6: Environmental Stability Testing
After initial leveling, the granite surface plate should be allowed to settle for 24-48 hours, then re-verified. Thermal mass effects and structural relaxation in the granite can cause slight deviations during this period.
Acceptance Criteria: The plate should be re-leveled if any deviation exceeds 50% of the total allowable tolerance. This ensures long-term stability and minimizes maintenance frequency.
Step 7: Ongoing Monitoring and Maintenance
Precision is not a one-time achievement-it requires continuous monitoring. Implement a schedule for periodic verification, typically every 6-12 months depending on usage intensity and environmental conditions.
Critical Point: Keep detailed records of all calibration data over time. This trend analysis helps identify environmental or usage issues before they impact measurement accuracy.
Common Installation Errors That Cost Thousands
The three most frequent mistakes in granite surface plate installation are:
Incorrect support point placement: Supporting the plate at the wrong locations creates internal stress that distorts the surface, even if the plate appears level. This distortion often only reveals itself under load or temperature changes.
Ignoring environmental factors: Installing in areas with thermal gradients, direct sunlight, or near heat-generating equipment. A common example is placing a granite plate near a large CNC machine that generates heat during operation.
Skipping the settling period: Rushing to use the plate immediately after installation, before the granite and support structure have fully stabilized. This leads to long-term drift in calibration.
Each of these errors can introduce measurement errors of several micrometers-errors that can be catastrophic when measuring tight-tolerance aerospace or semiconductor components.
The Professional Advantage: Pre-Calibrated Installation Services
For organizations where precision is mission-critical, the risk of installation errors outweighs the cost of professional installation services. At UNPARALLELED, we offer comprehensive pre-calibration and installation services that ensure your granite surface plate achieves its rated accuracy from day one.
Our service includes:
On-site environmental assessment to identify potential issues before installation begins
Precision installation by certified technicians with decades of experience in metrology-grade installations
Initial calibration with traceable certification for compliance with international standards
Comprehensive documentation for quality management system requirements
The difference between a self-installed plate and a professionally installed one often comes down to one critical factor: confidence. When you're measuring components with micron-level tolerances, you need absolute confidence in your measurement foundation. Professional installation eliminates the uncertainty and provides documented proof of accuracy.
The Bottom Line
A granite surface plate is more than a flat piece of stone-it is the foundation of your entire metrology system. Investing in proper installation is not an added cost; it is protection for the substantial investment you've already made in precision equipment and the quality of your products.
For organizations that cannot afford measurement uncertainty, professional installation services provide the assurance that your granite surface plate will deliver the precision you require, when you require it. Because in the world of ultra-precision measurement, there is no room for error-and certainly no room for errors caused by something as preventable as improper installation.
Ready to achieve micron-level precision with confidence? Contact UNPARALLELED today to discuss your granite surface plate installation requirements and learn how our pre-calibrated installation services can transform your measurement accuracy.
