Flatness is the core precision index of granite inspection plates, which directly determines the benchmark stability of equipment and the accuracy of industrial detection data. Different from ordinary stone polishing, the flatness grinding of precision inspection plates is a systematic precision process covering base material treatment, rough and finish grinding, constant temperature calibration and precision shaping. The refined control of each process is the key to eliminating plate height difference, avoiding grinding stress and achieving micron-level flatness accuracy, and it is also the core difference between high-end granite benchmark components and ordinary stone products.
As a professional manufacturer of precision granite components, our company has years of in-depth experience in ultra-precision grinding technology. Relying on standardized production systems and constant-temperature dust-free processing environments, we optimize the complete processing flow targeting the pain points of granite inspection plate flatness grinding. Through core processes such as graded grinding, stress control and accurate calibration, we stably produce inspection plates with high flatness, high consistency and high stability, eliminating common problems such as plate warpage, local deviation and accuracy attenuation from the processing end.

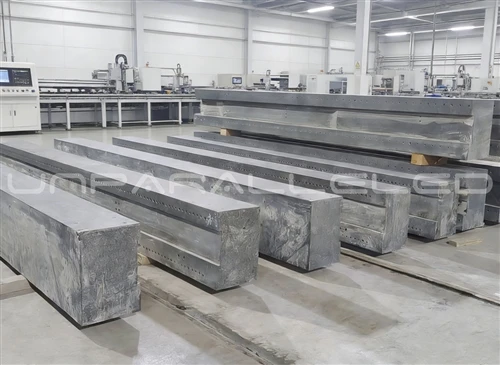

Base material pretreatment and stress relief are essential pre-processes for flatness grinding. Although granite features dense and hard texture, natural raw stone contains trace internal stress, and cutting processing will produce residual stress, which may cause plate deformation and flatness offset after long-term use. Our company adopts multi-stage aging treatment. The blanks undergo natural static aging and artificial constant-temperature stress relief to completely eliminate internal residual stress. Meanwhile, we manually screen base materials and eliminate plates with pinholes, looseness and uneven texture to ensure the uniformity and stability of subsequent grinding accuracy.
Graded grinding is the core process to ensure uniform plate flatness. The whole grinding process is divided into four gradients: rough grinding, medium grinding, finish grinding and ultra-precision grinding, which correct plate errors step by step and avoid local deformation caused by uneven force during single grinding. Rough grinding removes cutting tool marks and overall height difference to unify the basic flatness; medium grinding refines surface texture and corrects tiny deviations; finish grinding accurately controls overall flatness errors to approach micron-level standards; the final ultra-precision grinding is completed in a Class-10,000 constant-temperature, constant-humidity and dust-free workshop to eliminate subtle ripples and local high points and achieve uniform overall flatness.
Constant-temperature processing is the key to avoiding temperature deviation and locking precision flatness. Although granite has a low thermal expansion coefficient, ultra-precision grinding is extremely sensitive to temperature and humidity changes. Slight temperature difference will cause tiny plate deformation and affect grinding accuracy. All precision grinding processes are completed in a dedicated constant-temperature and humidity dust-free workshop with stable environmental parameters, eliminating interference from temperature deformation and dust, and ensuring stable plate status and accurate, traceable grinding data.
Local shaping and balanced grinding solve flatness deviation problems of large-size plates. Large-scale granite inspection plates are prone to uneven stress in edge and central areas, resulting in excessive local flatness error. To solve this problem, we adopt zoned precision shaping technology. High-precision testing equipment scans the full-area accuracy data, locates deviation areas, and adjusts grinding strength and duration pertinently to realize overall balanced grinding. It effectively solves industrial problems such as central depression and edge warpage of large plates and ensures qualified full-area flatness.
Final precision re-inspection and calibration build the last line of quality defense. No products will be delivered directly after grinding. Full-range flatness and roughness detection are carried out with CNAS traceable standards. Tiny deviation areas will be re-calibrated through fine grinding. We strictly implement ISO three-system quality control standards. All plates are classified into Grade 00, Grade 0 and industrial grade to meet the precision requirements of scientific research metrology, high-end manufacturing and industrial mass production.
Precision grinding technology is the core of granite benchmark plate accuracy and a direct reflection of enterprise precision manufacturing strength. In the future, we will continue to iterate ultra-precision grinding technology, optimize refined processing procedures, and overcome processing difficulties of large-size and ultra-high-precision plates. With strict process standards and stable product quality, we provide reliable granite benchmark carriers for precision geometric detection and equipment calibration in various industries, and continuously empower the quality upgrading of high-end precision manufacturing industry.
