In the hierarchy of metrology, the foundation is quite literally the most important part of the equation. Whether you are operating a high-end Coordinate Measuring Machine (CMM) or utilizing non-contact optical inspection systems, the accuracy of your data is entirely dependent on the reference plane.
For decades, Black Granite has remained the undisputed material of choice for these foundations. While cast iron and steel have their places in the workshop, they cannot compete with the natural physical properties of granite when microns are at stake.
This article explores the technical necessity of precision granite surface plates and why they are the silent partners in ensuring sub-micron accuracy in modern inspection workflows.
The Metrological Bedrock: Why Granite?

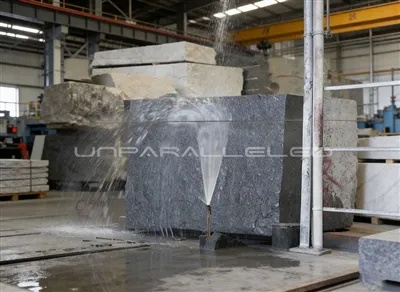

Precision granite is not just "rock." For industrial use, metrology-grade granite (typically Diabase or high-quartz Gabbro) is selected for its mineral density and lack of internal tension. Unlike metals, which are cast or forged and retain internal stresses that can cause warping over time, granite has been naturally aged for millions of years. It is dimensionally stable "out of the box."
1. Thermal Stability: The Enemy of Linear Error
In CMM and optical inspection, temperature is the greatest variable. Even a one-degree Celsius shift can cause a metal surface plate to expand or "dish," leading to measurement errors that are difficult to calibrate out.
Low Coefficient of Thermal Expansion (CTE)
Granite possesses a remarkably low coefficient of thermal expansion compared to cast iron or aluminum. Furthermore, granite has high thermal mass. It does not react quickly to sudden drafts or the heat generated by the electronic components of a CMM.
For optical inspection-where focal lengths are extremely sensitive-a base that stays flat regardless of the HVAC cycling in the lab is essential. Granite ensures that the distance between the lens and the workpiece remains constant, preventing focus drift during automated inspection cycles.
2. Vibration Damping: The Key to Repeatability
Optical comparators and CMMs are highly sensitive to "noise." Vibrations from heavy machinery on the factory floor, or even passing forklifts, can travel through the building's foundation and manifest as "jitter" in digital probes or blurred edges in optical imaging.
Natural Damping Properties
Granite's unique crystalline structure acts as a natural vibration dampener. It absorbs kinetic energy much more efficiently than steel.
For CMMs: This allows the probe to trigger accurately without "phantom" hits caused by resonance.
For Optical Inspection: High-magnification sensors require a perfectly still environment to capture clear images. Granite provides a "dead" surface that isolates the sensitive optics from environmental noise.
3. Surface Geometry and Hand-Lapped Precision
The "Accuracy" of a surface plate is defined by its flatness. Unlike metal plates that are often machined, high-end granite plates are hand-lapped by master technicians to Grade 00 or even "Laboratory Grade" specifications.
The Advantage of "Non-Wringing"
One of the most unique properties of granite is that it does not "wring" or burr in the same way metals do.
If a tool is dropped on a steel plate, it creates a crater with raised edges (a burr). These raised edges will tilt any part placed on top of them, ruining the measurement.
If a tool is dropped on granite, it may chip, but it will not "crater up." The surrounding surface remains perfectly flat. This "fail-safe" geometry ensures that your CMM stays calibrated even in a busy laboratory.
4. Resistance to Corrosion and Wear
Optical and CMM inspection often take place in cleanrooms, but "clean" doesn't always mean "dry." Humidity can cause cast iron plates to rust overnight, requiring constant oiling and degreasing.
Zero Maintenance Degradation
Granite is chemically inert. It does not rust, corrode, or react with the cooling lubricants often found on machined parts. For optical inspection, this is critical because there is no oily film or rust residue that could contaminate sensitive lenses or interfere with the light path.
Moreover, granite is highly abrasion-resistant. The constant sliding of CMM air-bearings or heavy fixtures across the surface will not wear down the granite for years, preserving the flatness of your primary reference plane.
5. Compatibility with Air-Bearing Technology
Modern bridge-style CMMs rely on Air Bearings to move the X, Y, and Z axes with zero friction. These bearings float on a thin film of compressed air (usually 3 to 5 microns thick).
A Mirror-Smooth Interface
To work effectively, air bearings require a surface that is not only flat but also has a specific surface finish.
Granite can be polished to a mirror-like finish that allows air bearings to glide without any "stiction."
The porosity of certain granites actually helps maintain that air film, ensuring the CMM bridge moves with fluid precision, which is the heartbeat of a high-speed inspection routine.
Comparison: Granite vs. Cast Iron for Inspection Bases
| Property | Granite (Metrology Grade) | Cast Iron |
| Stability | Excellent (Naturally Aged) | Poor (Internal Stresses) |
| Corrosion | Immune | High (Requires Oiling) |
| Hardness | Very High (Scratch Resistant) | Moderate |
| Thermal Mass | High (Resists Temp Changes) | Low (Reacts Quickly) |
| Maintenance | Minimal (Soap & Water) | High (Cleaning & Rust Prev.) |
Conclusion: Investing in the Foundation of Quality

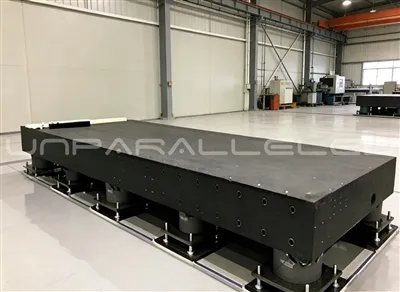

In the world of CMM and optical inspection, your results are only as good as the surface they sit on. A precision granite surface plate isn't just a table; it is a calibrated instrument. By providing thermal stability, vibration isolation, and permanent flatness, granite allows your sophisticated sensors to perform at their theoretical limits.
As manufacturing move toward Industry 4.0 and tighter tolerances, the role of the granite base becomes even more critical. It is the only material that offers the reliability required for 24/7 automated quality control.
