UNPARALLELED LTD is one of the leading manufacturers and suppliers of plate support stand in China. With abundant experience, we warmly welcome you to buy advanced plate support stand made in China here from our factory. We also accept custom orders.
The Part of Your Measurement Chain Nobody Talks About
Every conversation about surface plate accuracy focuses on the plate itself - flatness grade, calibration certificate, material density. Almost nobody asks what the plate is sitting on. That's a gap worth closing, because a perfectly flat granite reference surface resting on a stand that flexes, wobbles, or transmits floor vibration will quietly undermine every measurement taken on it. UNPARALLELED® built this precision support stand specifically to close that gap - a stable, adjustable base engineered to protect the plate's calibrated flatness, not just hold it off the floor.
If you've been searching for "granite surface plate stand," "how to level a surface plate correctly," or "vibration-isolating support for metrology equipment," this stand addresses exactly that need.
quality control

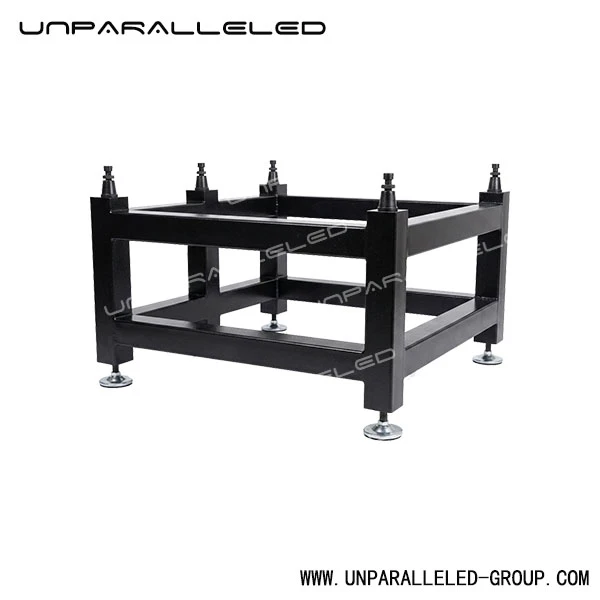

Technical Specifications
| Parameter | Specification |
|---|---|
| Frame material | Welded steel, box-section construction |
| Finish | Matte black powder coating |
| Configuration | Two-tier frame with lower storage shelf |
| Top-level leveling supports | 5-point fine-adjustment, independently threaded |
| Floor-leveling feet | 4-point independently adjustable ball feet |
| Structural design | Triangulated corner-post frame for load rigidity |
| Available sizing | Custom footprint and height to match plate dimensions |
| Load rating | Configured to your specific plate size and weight |
Exact dimensions and load rating are configured to match your granite surface plate specification - see FAQ below.
services
Core Advantages
- Two-stage leveling system - coarse adjustment at the floor, fine adjustment at the plate, giving technicians precise control without disturbing the granite itself once it's positioned.
- Rigid welded construction - box-section steel and triangulated framing resist flex under load, protecting the plate's calibrated flatness from support-induced deviation.
- Independent point-loading control - five top-level supports allow uneven floor or minor plate irregularities to be compensated without introducing new stress into the granite.
- Usable lower shelf - practical storage for fixtures and gauge blocks directly beneath the working plate, keeping a lab workstation organized and efficient.
- Corrosion-resistant finish - matte black powder coating built for long-term shop and lab environments.
- Built to your plate's dimensions - footprint, height, and load rating are configured around your specific granite surface plate, not a generic catalog size.
Where This Stand Earns Its Keep
Picture a metrology lab installing a new granite reference plate, freshly calibrated and certified before shipment. Set that plate on an uneven floor without proper leveling, and the certificate becomes meaningless the moment the plate settles into a slightly twisted support condition - the measurement error introduced isn't from the granite, it's from what's underneath it. A two-stage leveling stand solves that at installation, and continues to matter every time the lab environment shifts slightly - a nearby equipment move, minor floor settling, seasonal humidity changes affecting a concrete floor's level.
For labs running dimensional inspection or calibration work daily, the lower shelf earns its place too - keeping angle plates, parallels, and gauge blocks within arm's reach of the plate rather than scattered across a separate bench.
FAQ
Can the stand be sized to match our existing granite plate? Yes - footprint, height, and top-support layout are configured to your plate's specific dimensions and weight, whether it's a standard size or custom-machined.
How often should the leveling be checked once the stand is installed? This depends on your lab's environment and usage intensity, but checking level whenever a precision level or the plate's own calibration schedule calls for verification is good practice - floors can shift slightly over time even in stable buildings.
Is this stand suitable for use with a vibration-isolation system? The stand's rigid frame and independent leveling supports are compatible with most standard lab flooring; for labs with significant floor-transmitted vibration concerns, let us know and we can discuss additional isolation options alongside the stand design.
Does the stand come pre-matched to a specific UNPARALLELED® plate, or can it support plates from other suppliers? The stand can be configured to support granite plates from any supplier, provided we have the plate's dimensions and weight to properly engineer the support layout and load rating.
certificates
Ready to Give Your Surface Plate the Foundation It Deserves?
If you've invested in a precision-calibrated granite surface plate, it's worth making sure what it's sitting on isn't quietly working against that calibration.
Request a custom quote: send us your plate's dimensions, weight, and lab floor conditions, and our engineering team will respond with a tailored stand configuration and lead time.
📩 Get a Quote / Technical Consultation - contact UNPARALLELED® directly, or visit www.unparalleled-group.com to speak with our precision engineering team.
UNPARALLELED® - Dare to be first, courage to innovate. No cheating, no concealment, no misleading.
