UNPARALLELED LTD is one of the leading manufacturers and suppliers of precision granite base assembly in China. With abundant experience, we warmly welcome you to buy advanced precision granite base assembly made in China here from our factory. We also accept custom orders.
A Foundation of Absolute Stability
In the demanding world of ultra-precision manufacturing, stability is not just a feature-it is the foundation of accuracy. The UNPARALLELED® Precision Granite Column & Base Assembly represents the pinnacle of inertial stability and geometric perfection. Unlike traditional metal bases that suffer from thermal expansion and internal stress, our premium black granite structure provides an unwavering platform for your most critical applications.

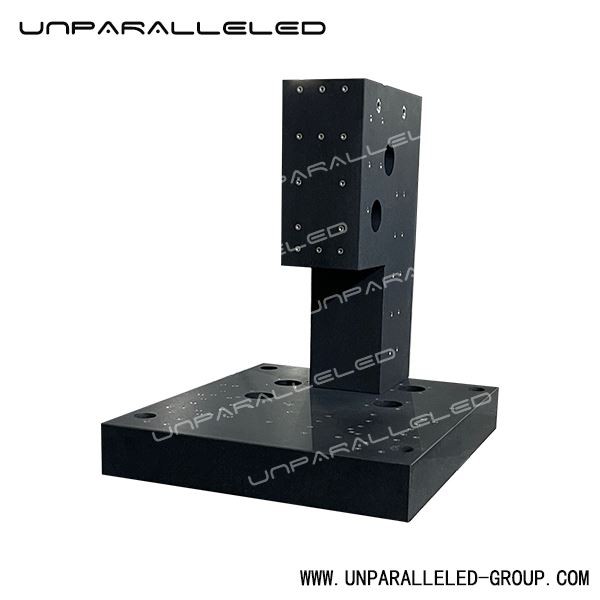

Engineered for the semiconductor, metrology, and laser industries, this component is machined from high-density natural granite (≈3100kg/m³). The image displays a robust "L" or "T" shaped configuration, featuring a massive rectangular base supporting a vertical column. The surface is precision-ground to a mirror-like finish, revealing the fine, consistent grain of our exclusive stone material. Precision-drilled and threaded mounting holes are strategically distributed across the top and side faces, facilitating the seamless integration of linear motors, guides, and sensors. This is not just a support structure; it is the bedrock of high-speed, high-accuracy motion systems.
Why Choose UNPARALLELED® Granite Components?
We don't just cut stone; we engineer stability. While many competitors cut corners by using lower-grade marble or standard granite, we strictly adhere to our "No Cheating" commitment.
- Superior Material Density: We utilize UNPARALLELED® black granite with a density of approximately 3100kg/m³. This is significantly higher than standard granite or marble, offering superior vibration damping and load-bearing capacity.
- Zero Thermal Expansion: Our granite components are virtually immune to temperature fluctuations, ensuring that your equipment maintains nanometer-level accuracy even in varying workshop conditions.
- Master Craftsmanship: Each piece is finished by artisans with over 30 years of experience. They possess the "golden touch," capable of hand-scraping surfaces to micron-level flatness, ensuring perfect geometric alignment.
- Custom Engineering: Whether you need a simple surface plate or a complex 100-ton granite bed with integrated air bearings, our 200,000m² facility is equipped to handle monolithic processing up to 20 meters in length.
quality control
Technical Specifications
| Feature | Specification / Detail |
|---|---|
| Material | Premium UNPARALLELED® Black Granite (Natural Stone) |
| Density | ≈ 3100 kg/m³ (High-Density Grade) |
| Surface Finish | Precision Ground & Polished (Mirror Finish) |
| Accuracy Grade | Customizable (000 Grade / Reference Grade available) |
| Fabrication | CNC Machining, Precision Drilling, Tapping, Grooving |
| Applications | Semiconductor Equipment, CMM, Laser Cutting, PCB Drilling |
Real-World Applications
Where does this component fit in your production line?
- Semiconductor Manufacturing: Used as the base for wafer steppers and lithography machines where vibration isolation is critical.
- Precision Metrology: Serves as the structural backbone for Coordinate Measuring Machines (CMM) and optical measuring instruments (AOI), ensuring measurement repeatability.
- Laser Processing: Ideal for the beds of femtosecond and picosecond laser cutting machines, absorbing the micro-vibrations generated during high-speed processing.
services
FAQ
Q: How does your granite compare to standard marble bases?
A: Our UNPARALLELED® black granite is far superior to marble. With a density of ≈3100kg/m³, it offers better wear resistance, higher structural rigidity, and superior damping properties. We strictly refuse to use cheap marble, ensuring your equipment is built on a genuine, high-performance foundation.
Q: Can you machine complex shapes like the one in the picture?
A: Absolutely. Our facility houses massive CNC machines and large-scale grinders (including Taiwan Nante grinders). We can process monolithic products up to 100 tons and 20 meters in length, handling complex 3D geometries, precision holes, and threaded inserts with ease.
