UNPARALLELED LTD is one of the leading manufacturers and suppliers of granite gantry beam in China. With abundant experience, we warmly welcome you to buy advanced granite gantry beam made in China here from our factory. We also accept custom orders.
Product Overview

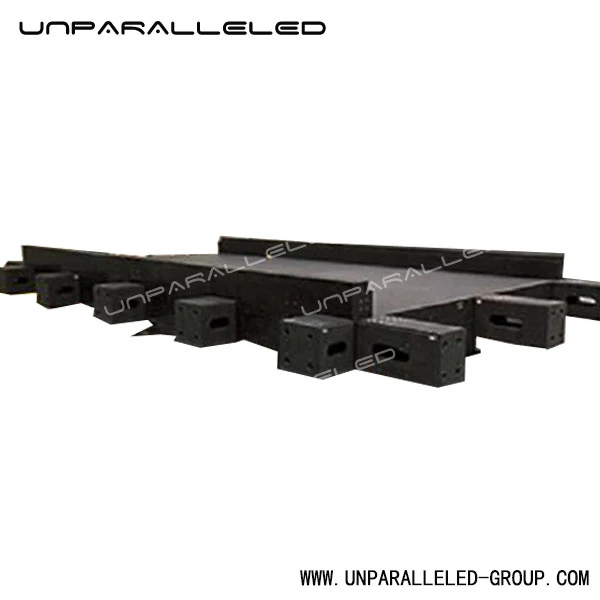

UNPARALLELED® granite gantry beam serves as the core transverse load-bearing reference component for ultra-precision gantry equipment, integrally machined from self-developed high-density black granite. The stone boasts a high density of 3100kg/m³ with fully released internal stress. It features outstanding vibration damping, minimal deformation, non-magnetic property and corrosion resistance. Its physical performance outperforms European and American granite, eliminating precision defects found in marble alternatives.

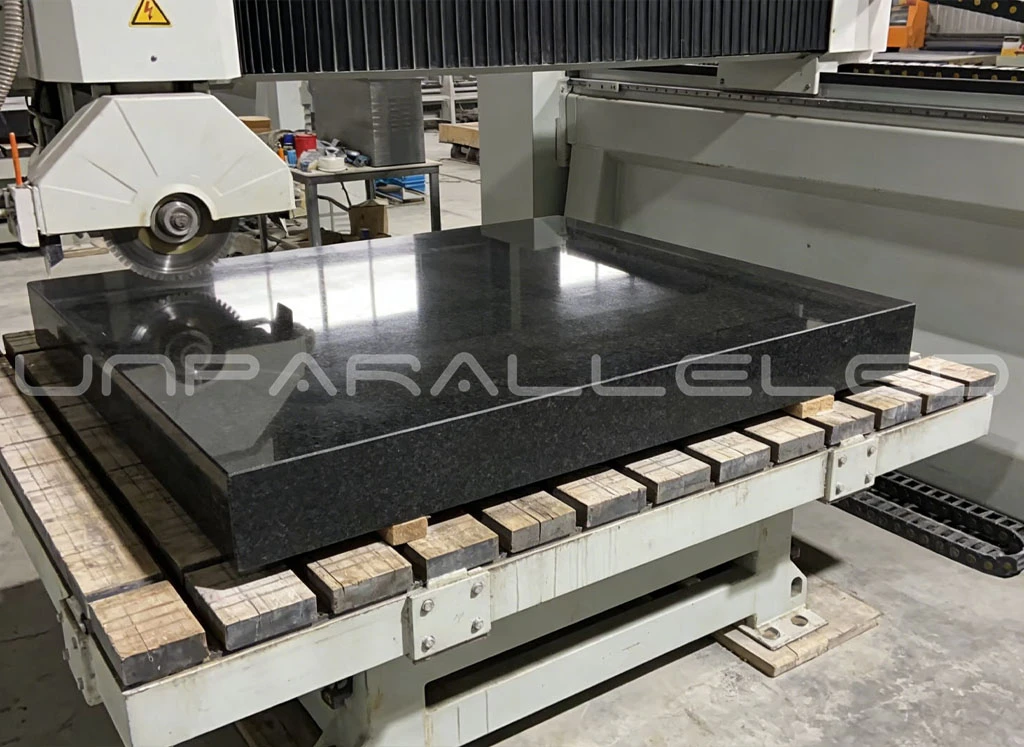

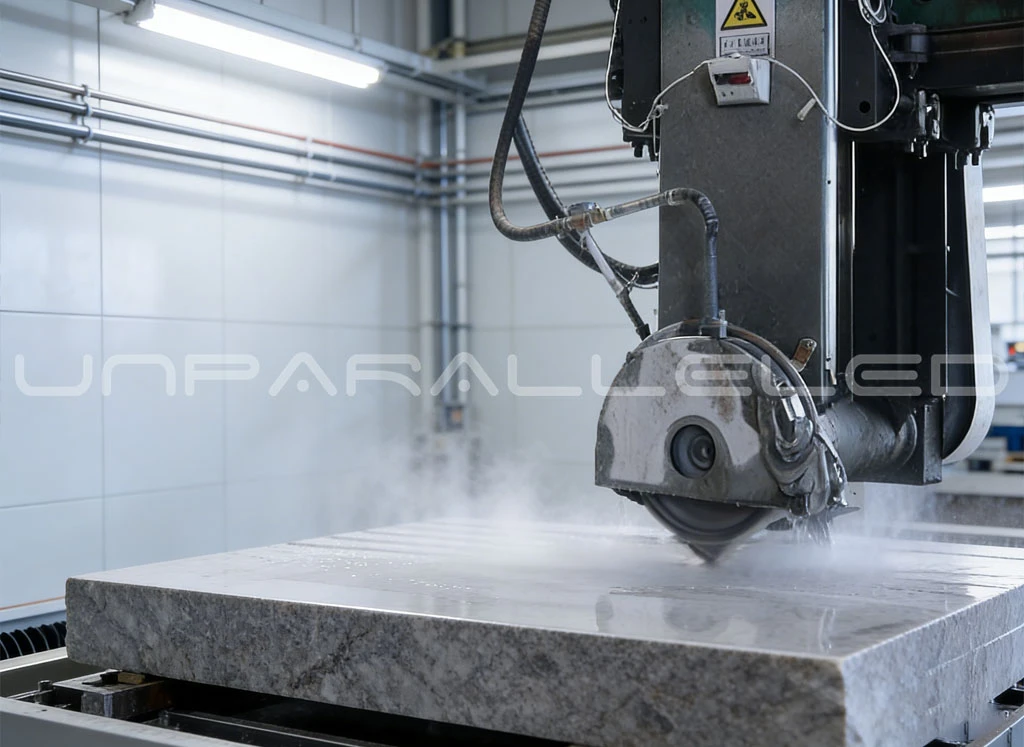

Manufacturing is carried out in a constant-temperature, vibration-proof and dust-free workshop, supported by large CNC equipment and imported ultra-precision grinders. Technicians with over 30 years of experience perform nano-level manual lapping. Custom extra-long sizes are available, with integrally machined guide rail grooves, air bearing grooves and mounting threaded holes pre-installed with stainless steel inserts, compatible with linear guides, air bearings, linear motors and other assemblies.

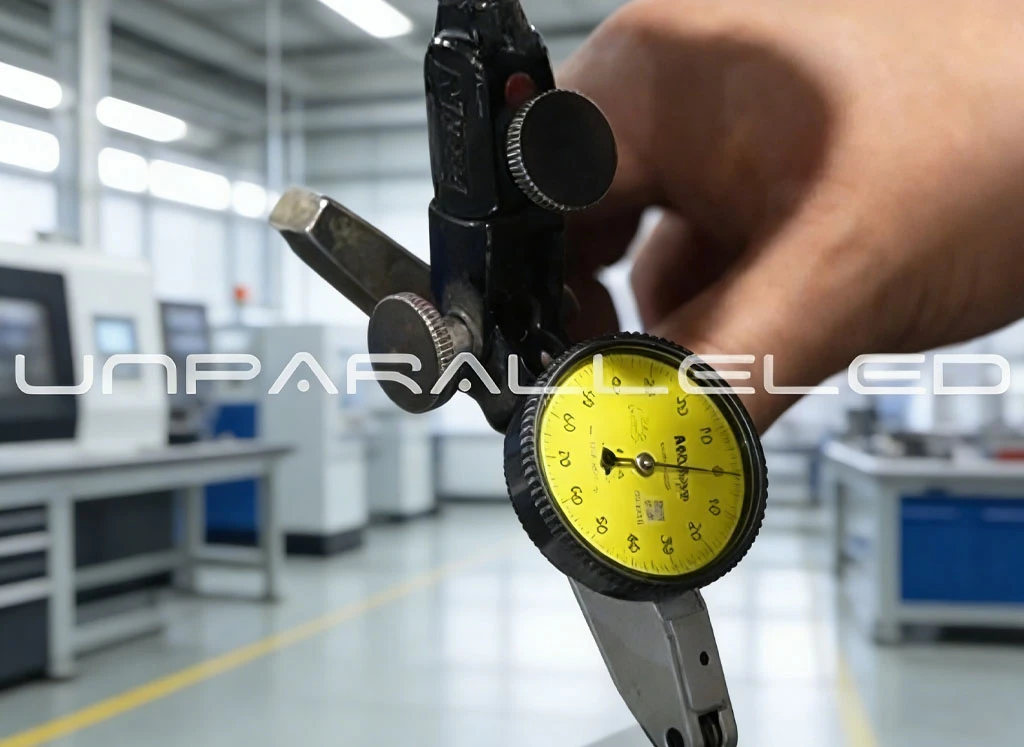

Each finished beam undergoes comprehensive inspection with imported instruments including German Mahr, Renishaw and Mitutoyo. Precision test reports are traceable to national metrology standards and comply with precision measurement specifications worldwide.
As the primary beam of the gantry frame, it forms a complete gantry structure when matched with granite bases and columns. Widely applied in high-precision equipment such as large CMMs, laser processing machines, semiconductor inspection equipment, PCB drilling machines and lithium battery testing platforms, it acts as a core component ensuring stable and ultra-high precision operation of premium precision machinery.
| Raw Stone Material | Natural Granite |
| Density | 2.98~3.05g/cm³ |
| Thermal Expansion Coefficient | ≤0.5×10⁻⁶/℃ |
| Flatness of Reference Surface | Grade 00: ≤0.5μm/100mm |
| Customizable Length | Standard and custom sizes available on request |
Quality Control
Product Application
1.Semiconductor: Wafer dicing, probe testing, die bonding packaging equipment
2.Precision inspection: Gantry CMM, vision measuring machine, optical inspection equipment
3.Precision machine tools: Nano grinding machines, micro engraving & milling machines, PCB drilling machines
4.Laser equipment: Laser micro-cutting, marking, precision cutting gantries
5.Precision automation: PV / lithium silicon wafer transfer, 3C automatic assembly
6.Aerospace & military industry: Tooling for high-precision part machining and dimension inspection
Quality Assurance
1.Raw material selection: Adopt high-density natural black granite with low thermal expansion, free of cracks and pores, featuring uniform and stable texture.
2.Stress relief aging: Long-term natural aging after rough machining to fully release internal stress and prevent post-production deformation.
3.High-precision manual lapping: Fine grinding by senior technicians to achieve micron and nano-level flatness, straightness and perpendicularity.
4.Strict inspection and calibration: Full-size testing with laser interferometers and precision levels, complete precision inspection reports provided.
5.Standard system certifications: The factory holds ISO quality, environmental and occupational health safety triple certifications as well as CE certification with standardized production control.
6.Finished product protection: Sealing glaze coating for anti-seepage, moisture-proof, rust-proof and wear-resistant performance to extend service life.
7.After-sales warranty service: Factory warranty for finished products, re-inspection and calibration support, and long-term precision maintenance solutions available.
Maintenance
1.Environment control: Keep the workshop at constant temperature and humidity. Avoid drastic temperature changes, dampness, dust and oil accumulation.
2.Daily cleaning: Wipe surface dust with dust-free soft cloth. Remove oil stains with neutral detergent; strong acid and alkali are forbidden.
3.Anti-collision and heavy load prevention: Avoid hard object impact and heavy pressure during handling and machining to prevent chipping and cracking.
4.Anti-seepage protection: Inspect the surface glaze coating regularly. Reapply coating in time if it peels off to prevent water mark penetration.
5.No unauthorized machining: Do not drill or grind directly on the beam to protect benchmark precision.
6.Regular precision recheck: Recheck flatness and straightness with laser interferometer every six months or one year. Calibrate promptly if precision drifts.
7.Proper storage: Cover for dustproof during long-term idle storage. Place on flat base to avoid deformation caused by one-sided stress.

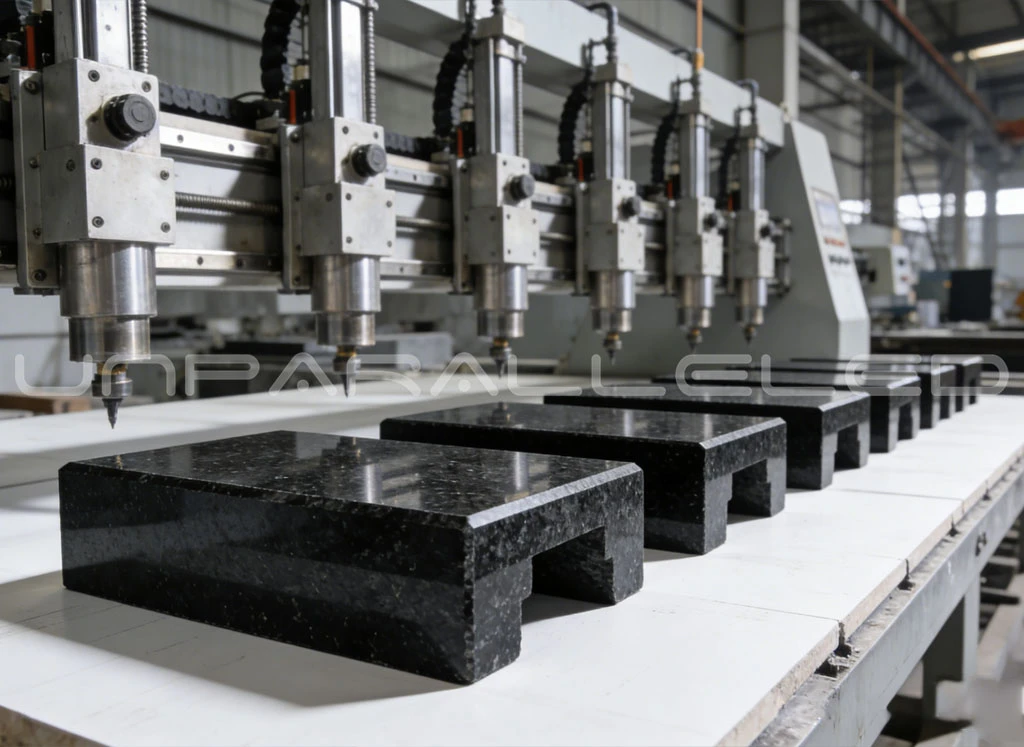

Factory Display
certificate
