Sub-Micron Motion Foundations Engineered for Semiconductor Wafer Inspection & Metrology
In sub-micron manufacturing and semiconductor lithography, mechanical chatter and micro-thermal drift destroy yield. Modern high-acceleration wafer inspection systems, optical alignment stages, and air-bearing rotaries demand structural bases that remain completely inert under dynamic operational stress.

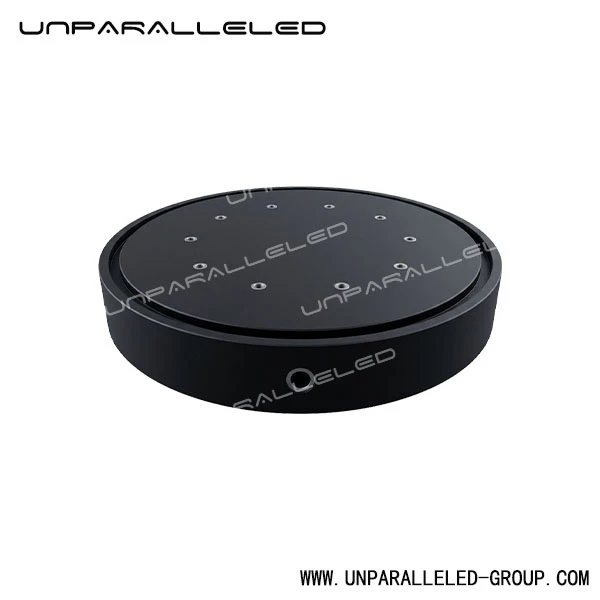

This Custom Ultra-Precision Granite Rotary Table Base delivers absolute dimensional stability for next-generation automated machinery. Featuring high-density, fine-grained UNPARALLELED® Black Granite, a recessed circular precision step, and factory-potted 316 stainless steel threaded inserts arranged in a precision radial pattern, this structure provides an unyielding, non-magnetic foundation for air-bearing rotary stages and high-accuracy optical metrology tools.
Technical Specifications
| Engineering Feature | Specification Detail | OEM Advantage |
| Primary Material | UNPARALLELED® High-Density Natural Black Granite | Zero internal mechanical strain; geologically stress-relieved |
| Flatness Accuracy | Sub-micron Grade 000 (DIN 876 / ASME B89.3.7) | Guarantees fly-height stability for 5–10 µm air bearings |
| Density (ρ) | ≈ 3100 kg/m³ | Superior thermal mass and physical low-pass vibration filtering |
| Coeff. of Thermal Expansion (α) | 4.5 × 10⁻⁶/K | Isotropic thermal stability under high motor power loads |
| Surface Finish (Ra) | ≤ 0.2 µm (Micro-Diamond Lapped) | Low friction; non-wringing topography |
| Threaded Inserts | 316 Stainless Steel (Potted with Structural Epoxy) | High pull-out strength without stress risers in stone |
| Magnetic Property | 100% Non-Magnetic & Non-Conductive | Zero hysteresis interference with linear encoder scales |
quality control
Core Engineering Advantages
- Superior Logarithmic Damping: Natural granite converts dynamic kinetic vibration into internal micro-frictional heat 3 to 5 times faster than grey cast iron, reducing settling time during rapid rotary acceleration cycles.
- Immunity to Thermal Distortion: With a low thermal expansion coefficient of 4.5 × 10⁻⁶/K, this platform resists warping caused by localized motor heat during continuous multi-shift operation.
- Zero Burrs & Wear-Resistant Hardness: Rated 6 to 7 on the Mohs hardness scale, granite fractures cleanly downward if accidentally nicked-eliminating raised metal burrs that collapse air bearing film gaps.
- Tailored OEM Customization: Manufactured to precise engineering drawings with custom insert patterns, vacuum channel slots, cable pass-through holes, and specialized mounting steps.
Real-World Application Scenarios
Semiconductor Wafer Inspection & AOI Stages
Serves as the stationary structural foundation for high-speed wafer spinning chucks, automated optical inspection (AOI) stages, and e-beam metrology platforms requiring absolute electromagnetic neutrality.
Precision Air Bearing Rotary Tables
Provides the micro-flat, wear-resistant mating surface necessary for porous carbon and aluminum air bearing spindles, delivering frictionless rotation with sub-arcsecond wobble errors.
Optical Alignment & Laser Interferometry Platforms
Offers a rigid, vibration-damped base for multi-axis laser alignment tools, picosecond laser processing heads, and CMM rotary tables.
services
FAQ
Q: Why choose natural black granite over synthetic polymer concrete or mineral casting for rotary stages?
A: While mineral casting offers good damping, natural black granite provides significantly higher elastic modulus (80–100 GPa) and density (≈ 3100 kg/m³). This guarantees higher static stiffness and allows master technicians to micro-lap surfaces manually down to nanometer-level flatness-something unmachined mineral casting cannot achieve natively.
Q: How are threaded inserts secured into the granite base without causing stress fractures?
A: We drill counterbored mounting holes and bond precision 316 stainless steel inserts using high-shear, low-shrinkage structural epoxy. Insert depths equal at least 2.5 times the bolt diameter, ensuring maximum pull-out force without risking micro-cracks in the granite matrix.
Q: Can this rotary platform be customized for non-standard machine dimensions?
A: Yes. UNPARALLELED Group specializes in 100% custom structural components. We machine complex geometries, pocket recesses, vacuum passages, and precision insert arrays directly from your CAD files.
certificates
Accelerate Your Sub-Micron Platform Development
Ready to eliminate thermal drift and dynamic vibration in your next-generation equipment? Partner with UNPARALLELED Group for expert technical drawing reviews, Finite Element Analysis (FEA) consultation, and rapid OEM manufacturing quotes.
