Granite Vs Ceramic Vs Mineral Casting: Which Base Is Best For Precision?

If you're an engineer or procurement specialist working in ultra-precision manufacturing, you've likely faced this question: what material should I use for my precision machine base? The answer isn't straightforward, because the "best" material depends entirely on your application's specific requirements - thermal stability, damping capacity, hardness, cost, and long-term dimensional stability.

In this guide, we'll break down the three most popular precision base materials - granite, ceramic, and mineral casting - comparing their physical properties, manufacturing capabilities, and real-world performance. By the end, you'll have a clear framework for making the right material decision for your equipment.

Quick Comparison: Granite vs Ceramic vs Mineral Casting

Table 1: Core performance comparison of precision base materials.

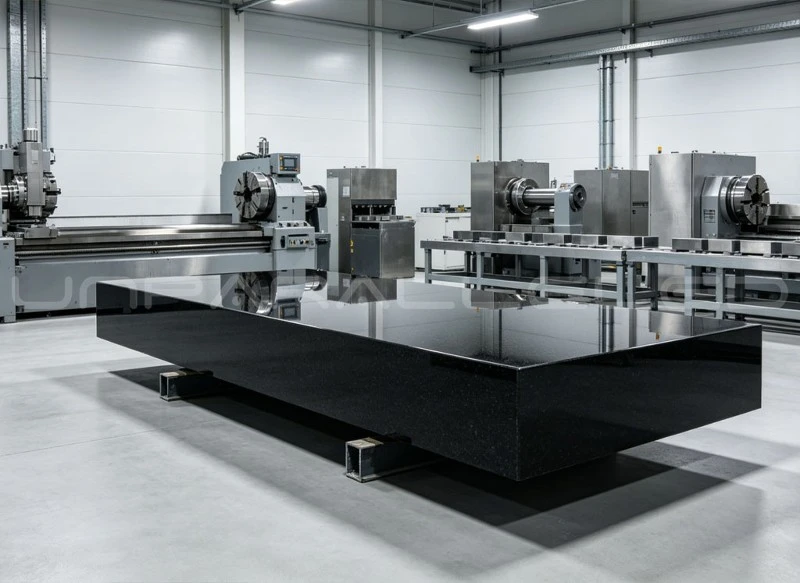

Precision Granite: Why Black Granite Sets the Industry Standard

When we say "granite," we don't mean just any stone. The quality of precision granite depends entirely on the geological source. At UNPARALLELED, we use exclusively UNPARALLELED black granite - a premium material sourced from specific deposits known for their exceptional density (approximately 3,100 kg/m³) and superior physical properties.

The Density Advantage

Density is the single most important indicator of granite quality for precision applications. Higher density means:

Lower porosity - fewer micro-voids that can trap moisture or degrade over time

Higher stiffness - better resistance to deflection under load

Superior damping - the material absorbs vibrational energy rather than transmitting it

Longer service life - resistant to wear, chemical attack, and environmental degradation

Unfortunately, many manufacturers in this industry cut corners by using cheaper marble or low-density granite substitutes. Marble, while visually appealing, has a density of only ~2,700 kg/m³ and significantly lower hardness. It's prone to scratching, chemical etching, and dimensional drift - none of which are acceptable in ultra-precision environments.

At UNPARALLELED, we firmly oppose this practice. Our black granite consistently achieves densities of approximately 3,100 kg/m³ - significantly higher than standard European or American black granites - delivering the dimensional stability and surface integrity that world-class precision equipment demands.

Thermal Stability That Matters

Precision granite exhibits one of the lowest coefficients of thermal expansion among structural materials (~7-8 x 10^-6/°C). This means your machine base won't expand or contract noticeably with ambient temperature fluctuations - a critical factor for equipment operating in non-climate-controlled environments or subject to seasonal temperature variations.

Compare this to cast iron (typical machine base material), which has a thermal expansion coefficient of ~11-12 x 10^-6/°C - nearly 50% higher than our black granite. For applications requiring nanometer-level stability, that difference is the gap between acceptable and exceptional.

Damping: The Hidden Performance Multiplier

Granite's internal damping capacity is 5 to 10 times greater than cast iron. In practical terms, this means:

Faster settling times after tool engagement

Smoother surface finishes on machined parts

Reduced tool wear due to vibration absorption

Quieter operation in precision measurement environments

This property alone makes granite the preferred choice for CMM (Coordinate Measuring Machine) bases, semiconductor inspection equipment, and precision optical platforms.

Engineering Ceramic: When Extreme Performance Justifies the Cost

Engineering ceramics - typically aluminum oxide (Al2O3), silicon carbide (SiC), or silicon nitride (Si3N4) - occupy the premium tier of precision materials. Their advantages are real and significant:

Where Ceramic Excels

Ultra-low thermal expansion - Silicon nitride can achieve expansion coefficients as low as 3.2 x 10^-6/°C, making it ideal for applications subjected to extreme thermal gradients

Exceptional hardness - Mohs 9-9.5, making ceramic virtually immune to wear in abrasive environments

Chemical inertness - Completely resistant to acids, bases, and solvents - critical for semiconductor wet processing

Non-magnetic and non-conductive - Essential for MRI equipment, electron microscopy, and cleanroom applications

The Limitations

However, ceramic isn't a universal solution. Key drawbacks include:

Brittleness - Ceramics are susceptible to chipping and catastrophic fracture under impact or point loading

Limited monolithic size - Sintering constraints typically limit ceramic parts to under 1 meter in any dimension

High cost - Raw material and processing costs are 3-5x higher than precision granite

Difficult machining - Requires EDM, laser, or diamond grinding, making design iterations expensive and time-consuming

Poor damping - Compared to granite, ceramics transmit vibration rather than absorb it

Best application scenarios: Semiconductor wafer handling components, lithography stage platforms, ultra-precision spindle housings, and aerospace sensor mounts where thermal stability and chemical resistance outweigh cost considerations.

Mineral Casting (Resin Granite): The Cost-Effective Alternative

Mineral casting - also known as resin granite, artificial granite, or polymer concrete - is a composite material made by binding natural aggregates (quartz, granite chips) with epoxy or polyester resin. It has gained popularity in mid-range precision equipment for good reason.

Advantages

Excellent damping - Comparable to or slightly better than natural granite in some formulations

Design flexibility - Can be poured into complex geometries that would be impossible with solid stone

Lower cost - Typically 30-50% cheaper than equivalent granite components

Good machinability - Can be milled, drilled, and tapped with standard metalworking tools

Lighter weight - Density of 2,200-2,600 kg/m³ vs. 3,100 kg/m³ for granite

The Trade-offs

Thermal limitations - The resin matrix has a much higher thermal expansion coefficient than stone, limiting stability in temperature-variable environments

Creep and aging - Resin can slowly deform (creep) under sustained load, and may yellow or degrade under UV exposure

Lower hardness - More susceptible to surface damage from impact or abrasive contact

Size constraints - Limited by mold design and pouring logistics; large monolithic pours are risky due to curing stresses

Environmental sensitivity - Performance can degrade in high-humidity or extreme temperature environments

Best application scenarios: Mid-precision CNC machine bases, inspection tables for quality control labs, and structural frames where cost optimization is prioritized over ultimate precision stability.

Real-World Case: Semiconductor Equipment Manufacturer Switches to Granite

A leading semiconductor inspection equipment manufacturer in Southeast Asia was experiencing yield inconsistencies in their AOI (Automated Optical Inspection) systems. The customer's existing cast iron bases were showing thermal drift during extended production runs, causing measurement variance that exceeded +/-2um - well outside their specification of +/-0.5um.

After evaluating options, they partnered with UNPARALLELED to replace the cast iron bases with our precision black granite components. The results were significant:

Thermal drift reduced by 85% - From +/-2.0um to +/-0.3um over 8-hour production cycles

Setup time reduced by 40% - Granite's superior damping meant the equipment settled to operating stability much faster

Maintenance interval extended - No thermal recalibration needed for 18 months (vs. quarterly recalibration with cast iron)

Total cost of ownership reduced by 35% - Despite higher initial material cost, the reduction in downtime and recalibration labor delivered significant savings

This case exemplifies why material selection isn't just a technical decision - it's a business decision with real ROI implications.

How to Choose: A Decision Framework

Use this simple framework to evaluate which material fits your application:

Why Material Source Matters - And Why It Often Doesn't

Here's an uncomfortable truth about the precision granite industry: not all "granite" is created equal.

Many manufacturers source granite from unspecified quarries, mixing high-grade and low-grade material to reduce costs. Some even use marble - which looks similar when polished but performs dramatically worse - and market it as "precision granite."

At UNPARALLELED, we maintain strict control over our material supply chain. Our UNPARALLELED black granite comes from verified sources with consistent density (>=3,100 kg/m³), uniform grain structure, and documented geological origin. Every batch is tested before it enters production.

This is why UNPARALLELED is the only manufacturer in our industry to hold all four major certifications - ISO 9001, ISO 45001, ISO 14001, and CE - and why we've registered over 20 international trademarks and patents across the EU, US, and Southeast Asia. Quality isn't just a promise; it's a systematically verified process.

Conclusion: There's No Single "Best" - But There Is the Right Choice

Granite, ceramic, and mineral casting each bring unique strengths to precision engineering. The key is matching material properties to your specific application requirements - not settling for whatever material your current supplier happens to stock.

If your application demands the combination of high density, lent damping, thermal stability, and long-term dimensional integrity - precision black granite from a verified, certified source is your optimal choice. And when you choose a partner like UNPARALLELED, you're not just buying a component; you're investing in a supply chain backed by 30+ years of expertise, global certifications, and a commitment to never compromise on material quality.

Ready to explore our precision granite solutions? Contact UNPARALLELED today for a consultation on your next precision component project.
