Granite structures turn up in industries that look very different from one another. A semiconductor tool, a coordinate measuring machine, a laser cutter, an optical inspection station and an industrial CT scanner all reach for the same material for the same reason: they need a reference that does not move, does not grow with temperature, and does not vibrate. This article walks through the industries served by UNPARALLELED®, what each one asks of a granite base or component, and where the same discipline applies again and again.
| Industry | Typical granite structure |
|---|---|
| Semiconductor and PCB equipment | Granite base, gantry and assembly with guide and air-bearing surfaces |
| Precision metrology and CMM | Granite surface plate, bridge and column set, master square and straight edge |
| Laser and optical inspection | Granite base and stage with high damping for a stable optical path |
| Industrial CT and X-ray | Granite base and assembly aligning source, detector and rotary stage |
| New energy (battery, photovoltaic) | Granite base and component for inline metrology and handling |
| Cutting tool and machine tool | Granite base, ruler and spindle reference for tool inspection |
Semiconductor and PCB equipment
Semiconductor equipment is the most demanding user of granite bases and granite assemblies. Lithography stages, wafer inspection tools, die bonders and wire bonders need structures that hold geometry to sub-micron levels, damp vibration from pumps and motors, and stay stable inside a controlled enclosure. The same properties are needed one step down the scale in PCB and electronics assembly, where drilling, laser routing, dispensing and inspection machines run at high speed and cannot tolerate a frame that rings. Here the granite component is usually a base or a gantry member machined for linear guides and motors, and increasingly for air-bearing slides.
Precision metrology and coordinate measuring machines

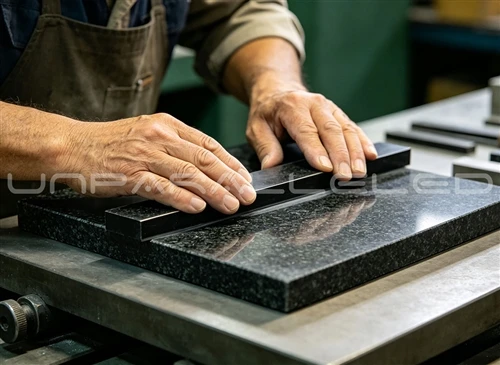

Metrology is where granite has the longest history. A granite surface plate is the reference plane of a calibration room; a granite bridge or column set forms the structure of a coordinate measuring machine; a granite straight edge or square is the master used to check other masters. In CMM work the requirement is not only stiffness but thermal stability, because a machine that reports to a few micrometres over a metre will drift out of specification if its structure expands. Air-bearing CMMs add a further demand: the granite guide surface is the bearing race, so its flatness and surface finish set the accuracy of travel directly.
Laser equipment and optical inspection
Laser processing and laser measurement systems depend on a stable optical path. A granite base gives the laser head, the workpiece table and the beam delivery optics a common reference, so that a cut, a weld or a measurement lands in the same place from the first part to the last. The same logic applies to optical inspection and AOI. At high magnification the depth of field is shallow, so the imaging stack and the part must hold their relative position to within a few micrometres while the stage moves. Granite stages and bases keep that geometry quiet in both cases.
Industrial CT and X-ray systems
Industrial CT and X-ray inspection place a source, a detector and a rotating stage in precise alignment. Because a scan can run for minutes and the reconstruction depends on the geometry staying fixed, the machine structure has to resist both thermal drift and vibration. A granite base or granite assembly is often chosen to carry the source and detector columns, with the rotary stage referenced to the same block, so that alignment is built into the structure rather than adjusted before every scan.
New energy: batteries and photovoltaics
New-energy manufacturing brings high volume and thin tolerances together. Lithium-ion cell lines, module and pack assembly, and photovoltaic cell and panel inspection all use automated stations that must repeat a measurement or a placement many millions of times without drifting. Granite bases and granite components are used for the metrology and handling stations inside these lines, where flatness and stability keep the process inside its control limits. The requirement here is less about one hero measurement and more about holding a number all day, every day.
Cutting tool inspection and machine tools
Tool inspection and tool presetting equipment checks the geometry of drills, end mills and reamers, often to a few micrometres. These machines are built around a stable reference and a precise spindle, and granite bases and granite measuring rulers are used to define that reference. The wider machine tool industry follows the same rule: grinding machines, jig borers, EDM machines and measuring machines are built on granite or cast structures chosen for damping and stability, and the supplier discipline of grinding, lapping and inspection is the same.
Universities and metrology institutes
Alongside production customers, we work with universities and metrology institutes. These users do not buy volume, but they buy the strictest flatness and the longest traceability chains, and their feedback is a useful check on our own process. Their work often sets the reference for the grades that industry then specifies, which is why a supplier able to serve a national metrology institute can usually serve an industrial line as well.
One material across many industries
The list of industries served is long, but the engineering repeats in a useful way. Whether the customer builds semiconductor tools, laser equipment, CMMs, optical inspection lines, industrial CT scanners, battery equipment or tool inspection machines, the same material and the same process carry the answer: a stable structure, ground and lapped to a defined tolerance, and verified with traceable metrology. UNPARALLELED® serves these industries with one product family and one quality system. A granite machine base for a semiconductor or laser tool, a set of granite measuring instruments for a calibration room, and an industrial CT or CMM structure are all built from the same black granite, ground, lapped and inspected in the same plant against the standard the customer names. If your industry is on this list, or close to it, send us the drawing and the accuracy target.
